Product information:

1. Environmentally friendly solder paste and immersion gold process, customers can use or recommend it with confidence;
2. Quality assurance, components have designated labels;

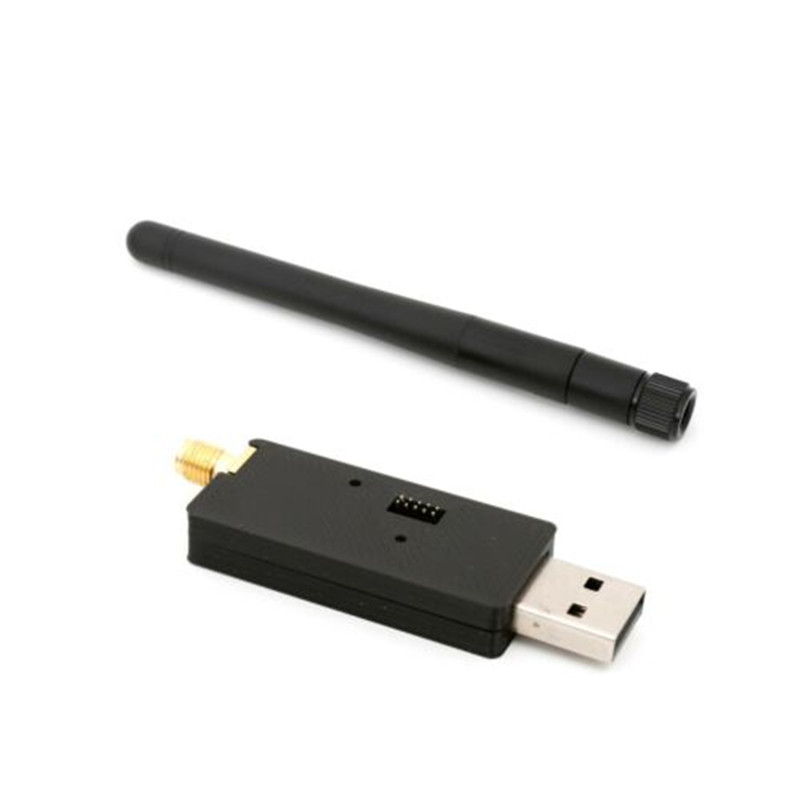

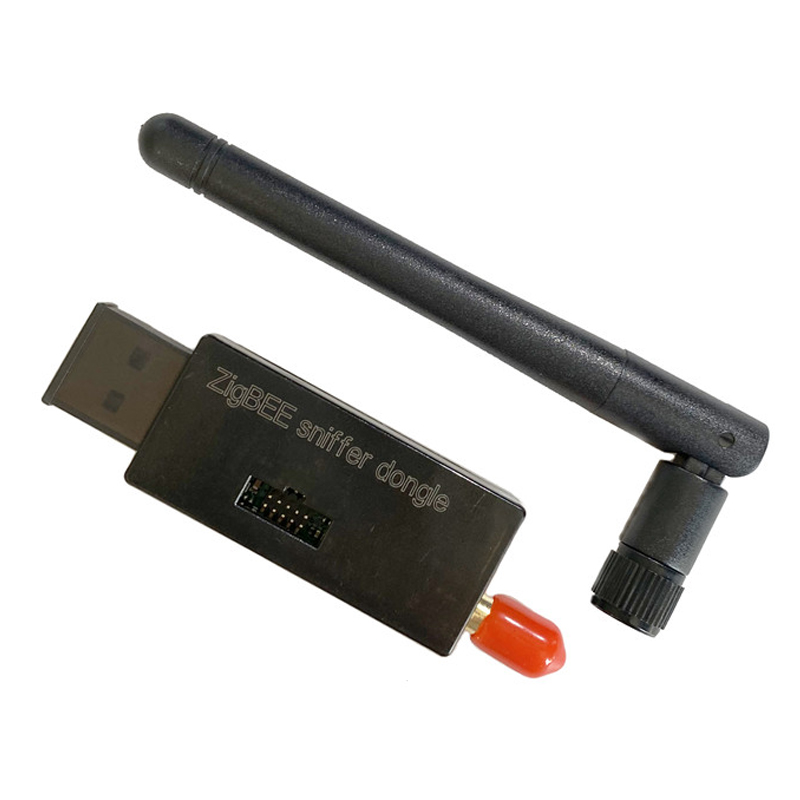

3. Small size: 4.1*1.6cm, ultra-thin design to avoid conflict with other USB devices;

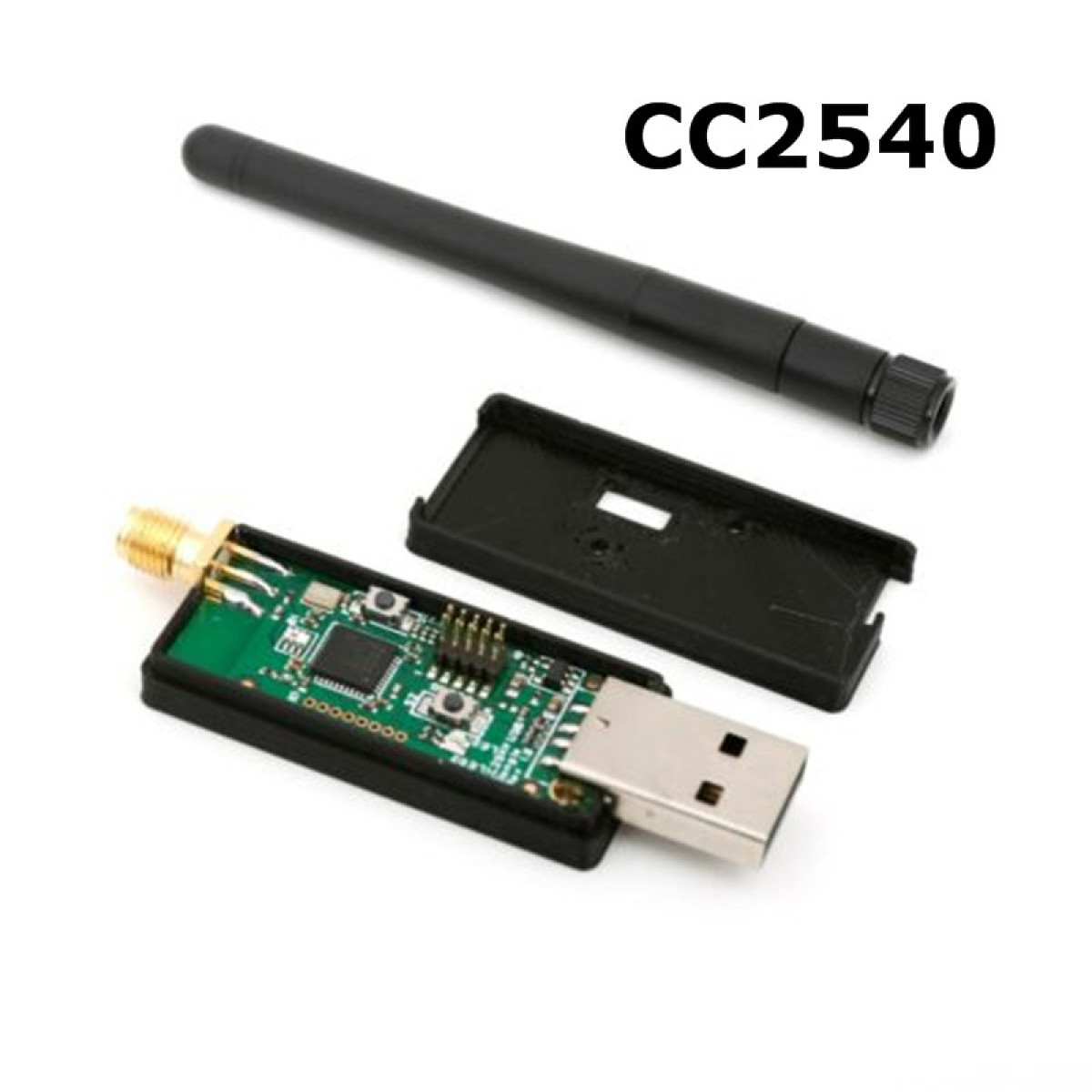

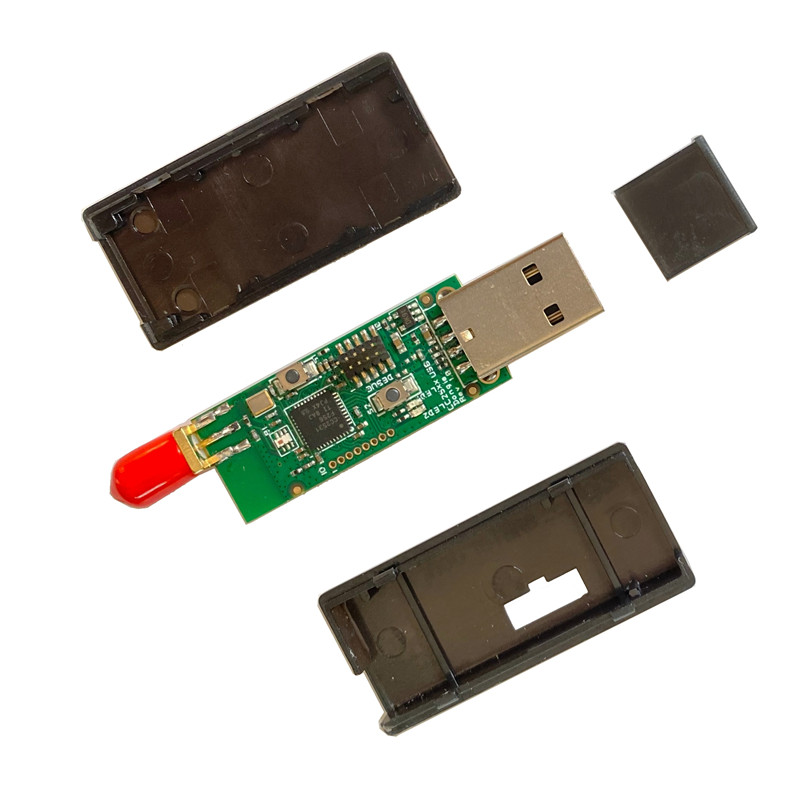

4. The product is small and sturdy, with a thickness of 1.6MM, 8 IO ports, and DEBUG pin headers. And can increase the shell;
5. The working frequency is 2.405-2.485GHz, and the wireless transmission rate reaches 250Kbaud;
6. Power consumption: receiving current <20mA, transmitting current <25mA;
7. Cooperate with the firmware detection protocol analyzer function;
8. Select the BALUN design (2450BM15A0002E), the distribution parameters have little influence, the performance is better, and it is stable and reliable;
9. DONGLE can program its own program as a transceiver module.

Features:

Added CC2650/CC2630/cc2538 chip program analysis! Theoretically, it is possible to analyze the devices of the 802.15.4 protocol.

Packing list:

Protocol Analyzer*1
