SPECIFICATIONS:
Type: Wireless Remote Switch
Material: ABS
Colour: Black

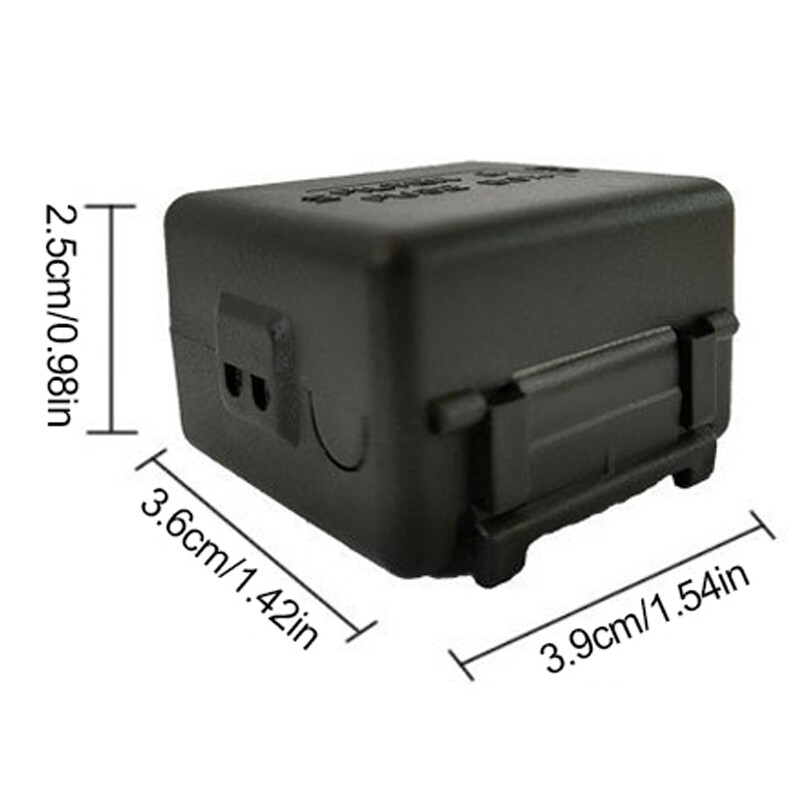

Size: APPROX. 36*39*25mm
Working Voltage: DC12V
Quiescent Working Current: ≤10mA
Operating Temperature: -40°C ~ +80°C
Receiving Sensitivity: ≥- 100dB
Working Frequency: 433MHZ
Output Current: ≤ 10A
Working Mode: Jog, Self-locking, Interlocking
Output Mode: Voltage or Signal (can control AC, DC)

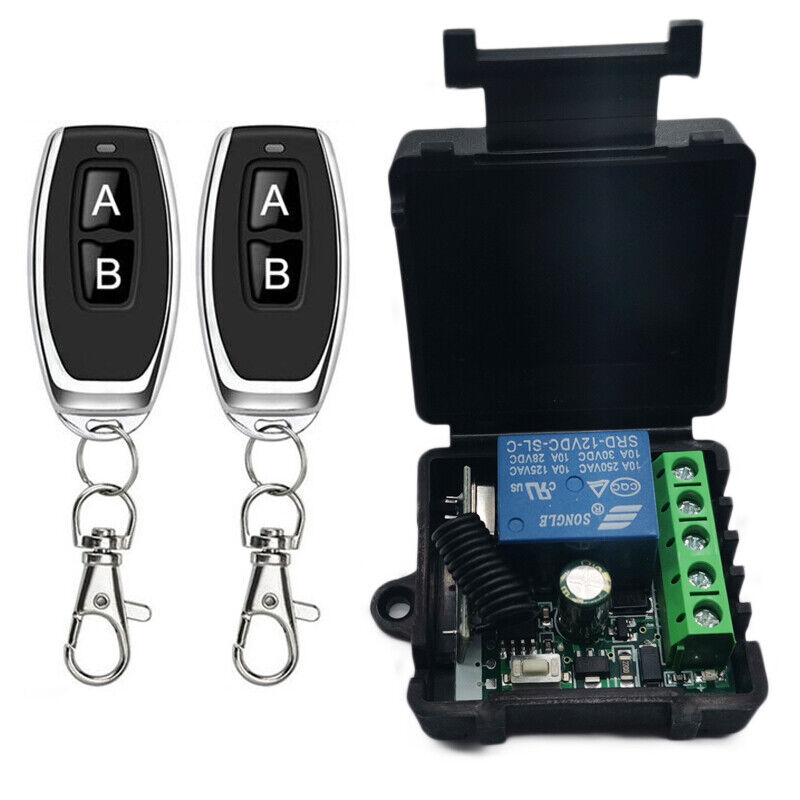

PACKAGE INCLUDED:
1x Repeater
2x Remote Controller

FEATURES:
Feature 1: 433MHZ Remote
Feature 2: Remote Relay
Feature 3: 12V Remote Controller Switch
Feature 4: DC Switch
Feature 5: Wireless Remote Controller

DESCRIPTIONS:
1. Adopts intelligent microprocessor control, which can be applied to garage door control, lighting control, curtains control, access control systems and various motor control systems, etc.
2. Small size, easy to install, safe and reliable in use
3. Working Mode: Jog, self-locking, interlocking (adjustable).
4. Inching Mode: press the remote controller the relay will connect, and then release the remote controller to disconnect the relay.
5. Self-locking Mode: press the remote controller the relay will connect, and then press the remote controller again to disconnect the relay.
6. Interlock Mode: press the remote controller key A to connect the relay and press the remote controller key B to disconnect the relay.
7. Wireless Remote Switch: The DC 12-volt relay switch, is built with high stability, security and performance. Max load current 10A and 433MHZ working frequency.
8. Strong Signal Remote Relay: The 433Mhz RF remote controller adopts RF technology and a stable signal. The signal of the wireless RF switch can pass through walls, floors and doors, steadily control from any place within a reliable distance.
