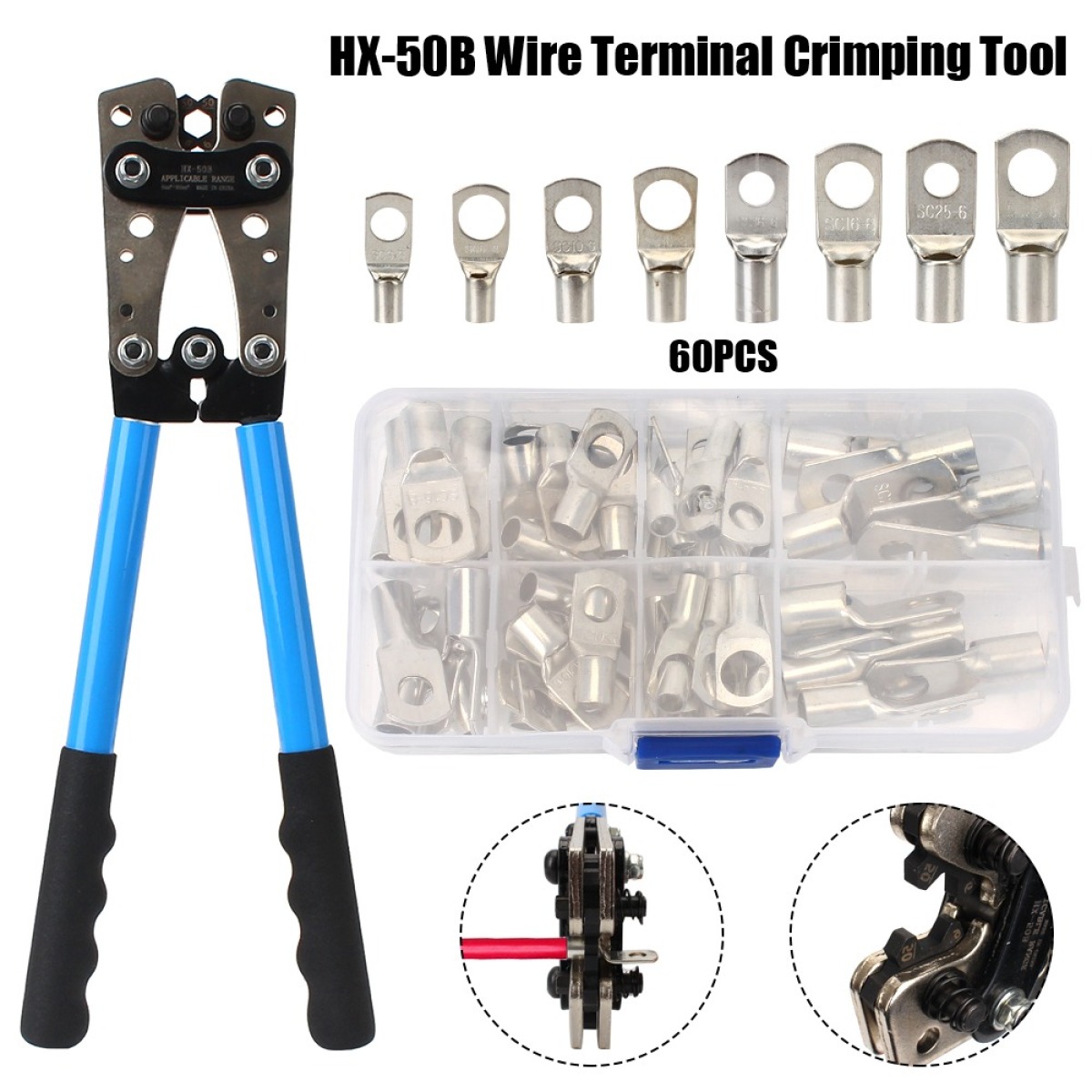

HX-50B Crimping Plier Kit 60pcs Auto Copper Ring Terminals Battery Terminal Wire Crimp Connector Crimping PliersProduct Name: HX-50B Crimping Plier Kit 60pcs Auto Copper Ring Terminals Battery Terminal Wire Crimp Connector Crimping Pliers Features: - Ensure crimping precision, keeping the wire tightly crimped with the ferrule terminal. - HX-50B Crimping Pliers have a long handle for more comfortable use. - The crimping pliers are sturdy and of high quality, making them an easy-to-carry crimping tool. - SC tinned peephole copper terminals are used to connect copper core cables to the copper ends of electrical equipment. - Electrolytic tinning ensures excellent corrosion resistance while minimizing the resistance of the electrical contact. Long-term operating temperature range: -55℃ to 150℃, with good conductivity and safety. - Crimping tool range: 6-50 mm².HX-50B Pliers Specifications: - Material: Metal - Clamp Length: Approx. 390 mm - Crimp Width: Approx. 14.2 cm - Crimp Thickness: Approx. 4.2 cm - Crimp Adjustment Levels: 6/10/16/25/35/50 mm²60Pcs Copper Ring Terminals Sizes and Quantity: - Material: Tin Plated Copper - SC6-6【10 PCS】 Cable diameter: 6 mm², Screw hole diameter: 6 mm - SC6-8【10 PCS】 Cable diameter: 6 mm², Screw hole diameter: 8 mm - SC10-6【10 PCS】 Cable diameter: 10 mm², Screw hole diameter: 6 mm - SC10-8【10 PCS】 Cable diameter: 10 mm², Screw hole diameter: 8 mm - SC16-6【5 PCS】 Cable diameter: 16 mm², Screw hole diameter: 6 mm - SC16-8【5 PCS】 Cable diameter: 16 mm², Screw hole diameter: 8 mm - SC25-6【5 PCS】 Cable diameter: 25 mm², Screw hole diameter: 6 mm - SC25-8【5 PCS】 Cable diameter: 25 mm², Screw hole diameter: 8 mm Note: - All dimensions are measured manually and may have measurement errors.Packaging Includes: 1 × 60pcs SC Terminals/HX-50B Pliers
