Application:

1994-2001 for Dodge Ram 1500 4x4 4WD ONLY

1994-2002 for Dodge RAM 2500 4X4 4WD ONLY

1994-2002 for Dodge RAM 3500 4X4 4WD ONLY

Selling Points:

-Increased off-road capability

-Elimination of the death wobble

-Lifted Jeeps are recommended to have adjustable track bars

-Reduce rollover risk

-Center your axle

Specification:

Length Adjustabe Range:Accommodates 0''-4'' of Vehicle Lift

Ride Height: 0"- 4" Lift

Item Weight ：7.82kg

Package dimension: 99*16*16c

Material of the Joints: alloy

Rodthickness:φ35 Rod Length:870mm

Warranty: 2 Year for any manufacturing defect

Description:

Powder coated gloss black for a brilliant and durable finish.

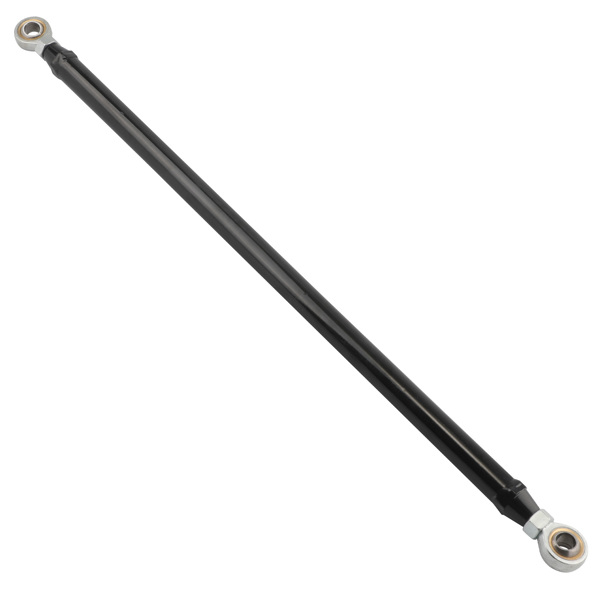

Adjustable Heavy Duty Carbon Steel Track (Panhard) Bar* and Relocator Bracket

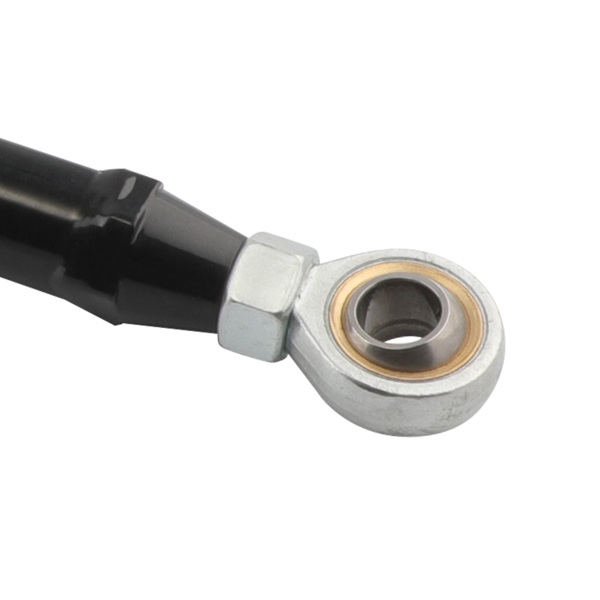

Tubular Design with Self-Lubricating Bushings for Easy Maintenance, Stability Strength.

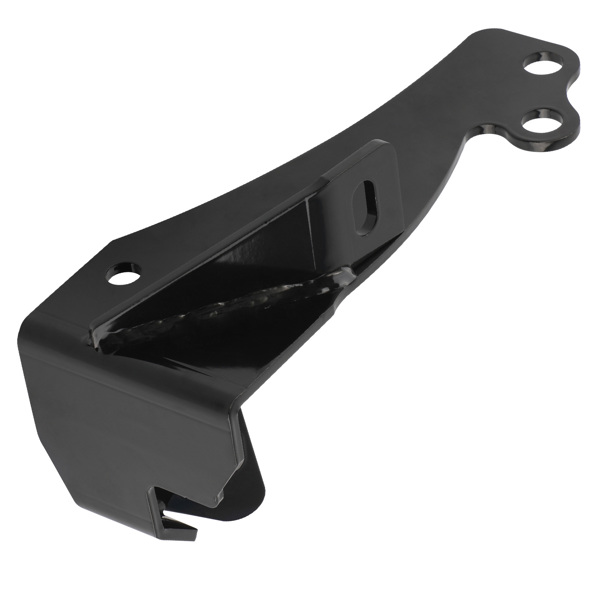

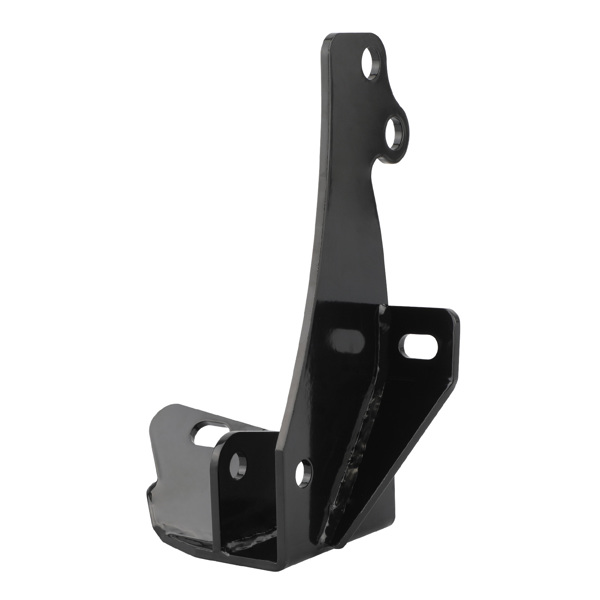

Relocator Bracket also made from Heavy Duty Carbon Steel.

Ensures Proper Axle Location Performance with Track Bar Relocator Bracket

Reduces, in most cases eliminates, "Death Wobble" (Axle Shake)

Most Drivers experience an Increase of Steering Comfort

Compatible with most aftermarket lift kits**

Feature:

100% brand new in box

Easy 100% bolt in installation with the use of basic hand tools. No cutting or welding is required.

Adjustable: Accommodates from 0''-4'' of Vehicle Lift

Tubular Design with Self-Lubricating Bushings for Easy Maintenance, Stability Strength.

Installation instructions:

1.Remove stock track bar. Using an socket remove the passenger’s side bolt

On the driver’s side mount you will need to remove the cotter pin. Then using a wrench, loosen and remove the castle nut.Finally using a joint fork pry the track bar away from the frame mount.

2.You should be able to remove the track bar now. Using a bristle brush, clean out the inside of the driver’s side track bar mount. As well, clean the lower face around the hole.Clean the outside frame rail where the retrofit bracket will mount.

3.Align the support brackets and take the fork of the pan-har rod as a reference. Be careful not to make the right or wrong direction. Install the nuts one by one and tighten them.

4.Locate the existing hole justbelow the ground strap. Drill bitand thru drill this hole tothrough the other side of theframe.

The drill hole must be level. Once through, deburr the exithole. Mounting nut

5.Fix the brake line.

6.Adjust the track bar to a suitable length, and fix the nut.

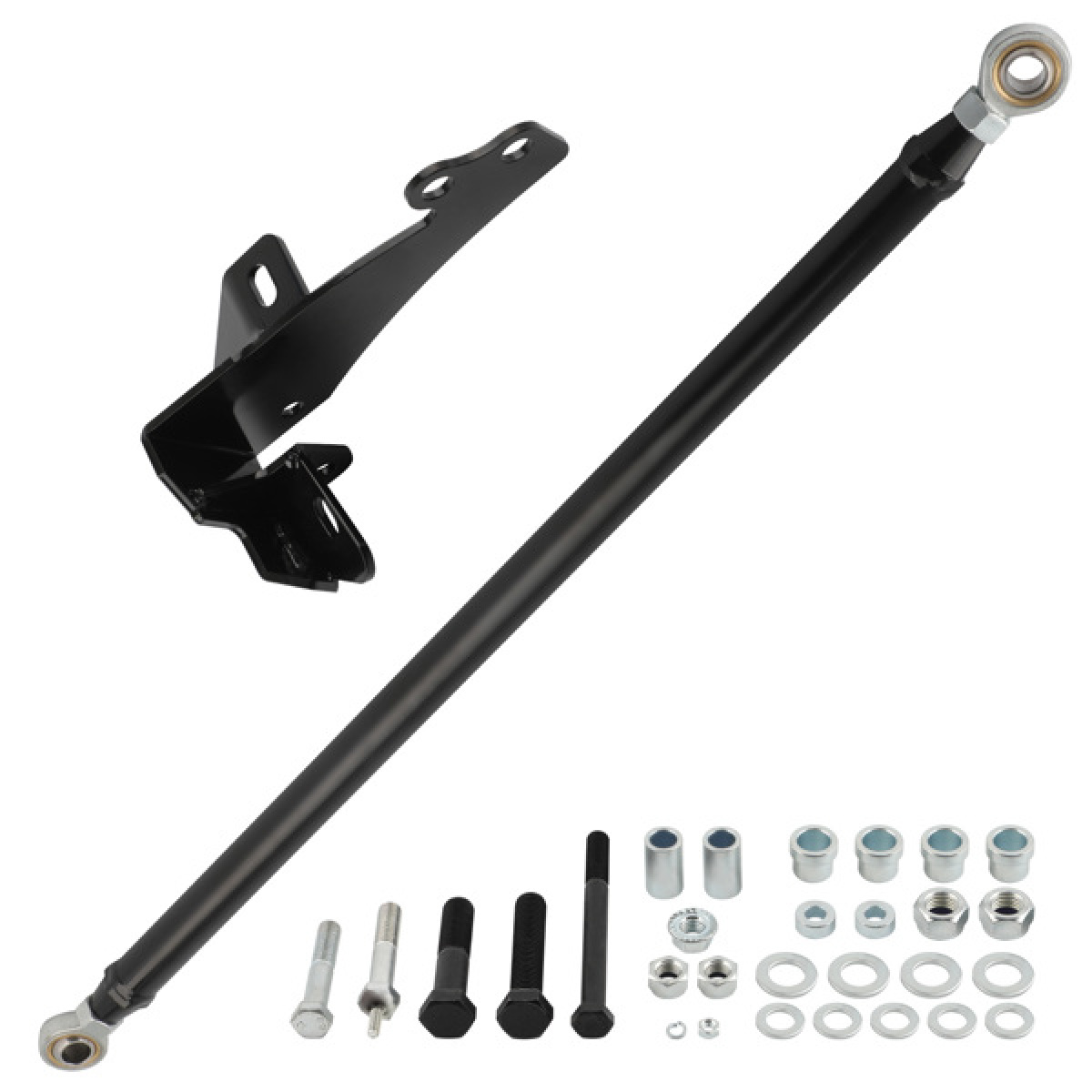

Package Includes:

1x Heavy Duty Carbon SteelAdjustable Track bar

1x Bracket (6mm thickness)

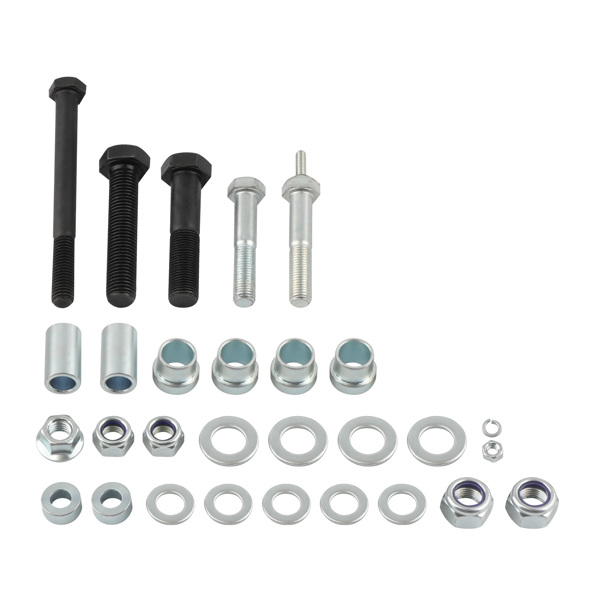

5x Bolts (1xCombination bolt \4xHexagon head bolts)

Several gaskets

you will get what the picture shows

Notice：

California Prop 65 Warning

Code:MXR02FXSY
