FEATURE:

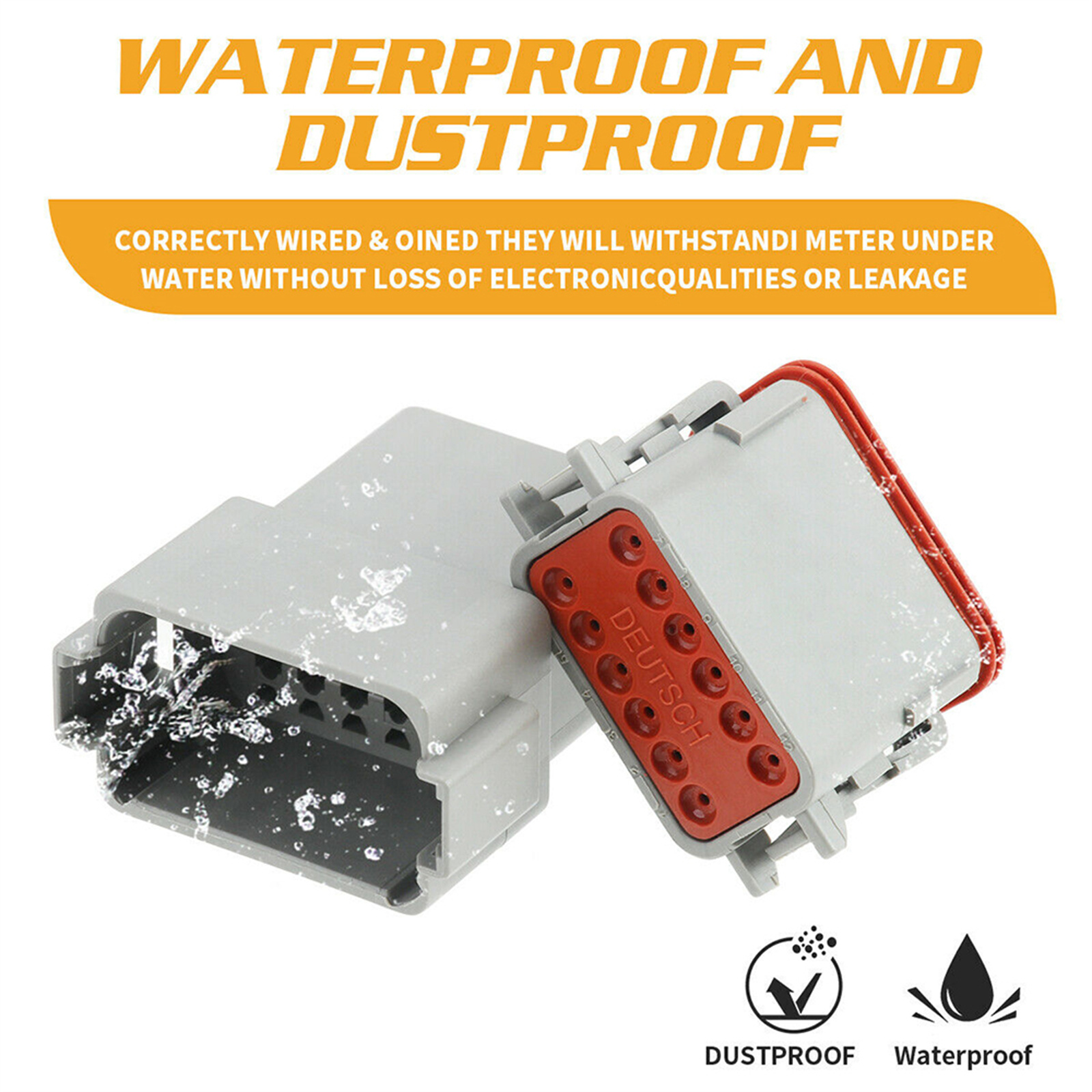

- DT Series Connectors:Our DT Series connectors offer reliability and rugged quality, with optional flange mounting, multi-pin arrangements, lower cost, and design flexibility; Waterproof and dustproof will without loss of electronic qualities or leakage after installed.

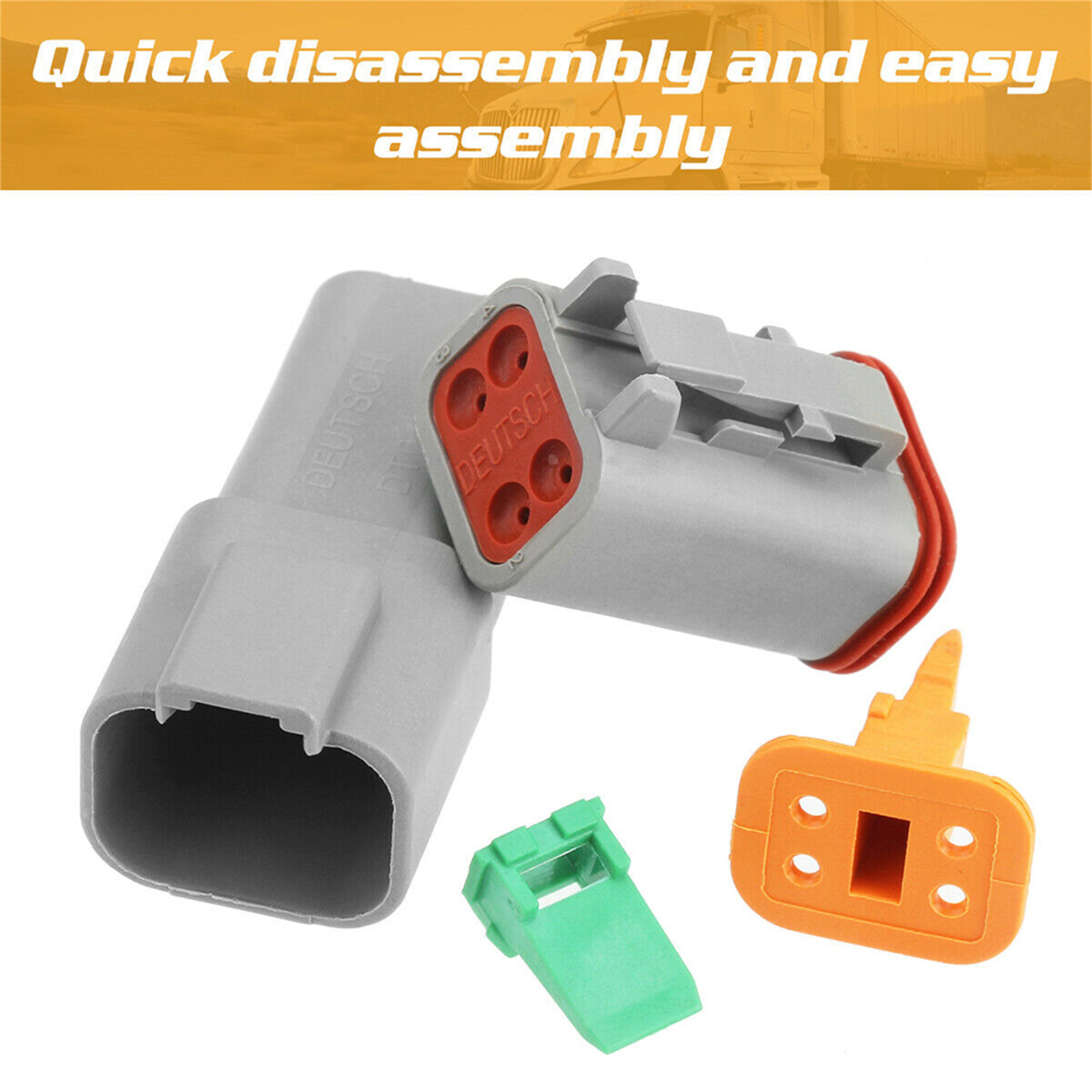

- Easy To Install:Buckle design ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out of the connector. It can also be easily removed when needed.
- High precision terminals:Connector terminals use high-precision phos-copper plating process to improve conductivity, easy to install under soldering and crimping.
- Product Quality:All the connector plugs are made of high quality environmental-friendly nylon materials, corrosion-resistant and wear-resistant, durable enough for your long term using.
- Wide Application:These waterproof connectors are suitable for various wire connectors of motorcycle, scooter, car, truck, quad bike, caravan, marine and other automotive equipment.

SPECIFICATION:

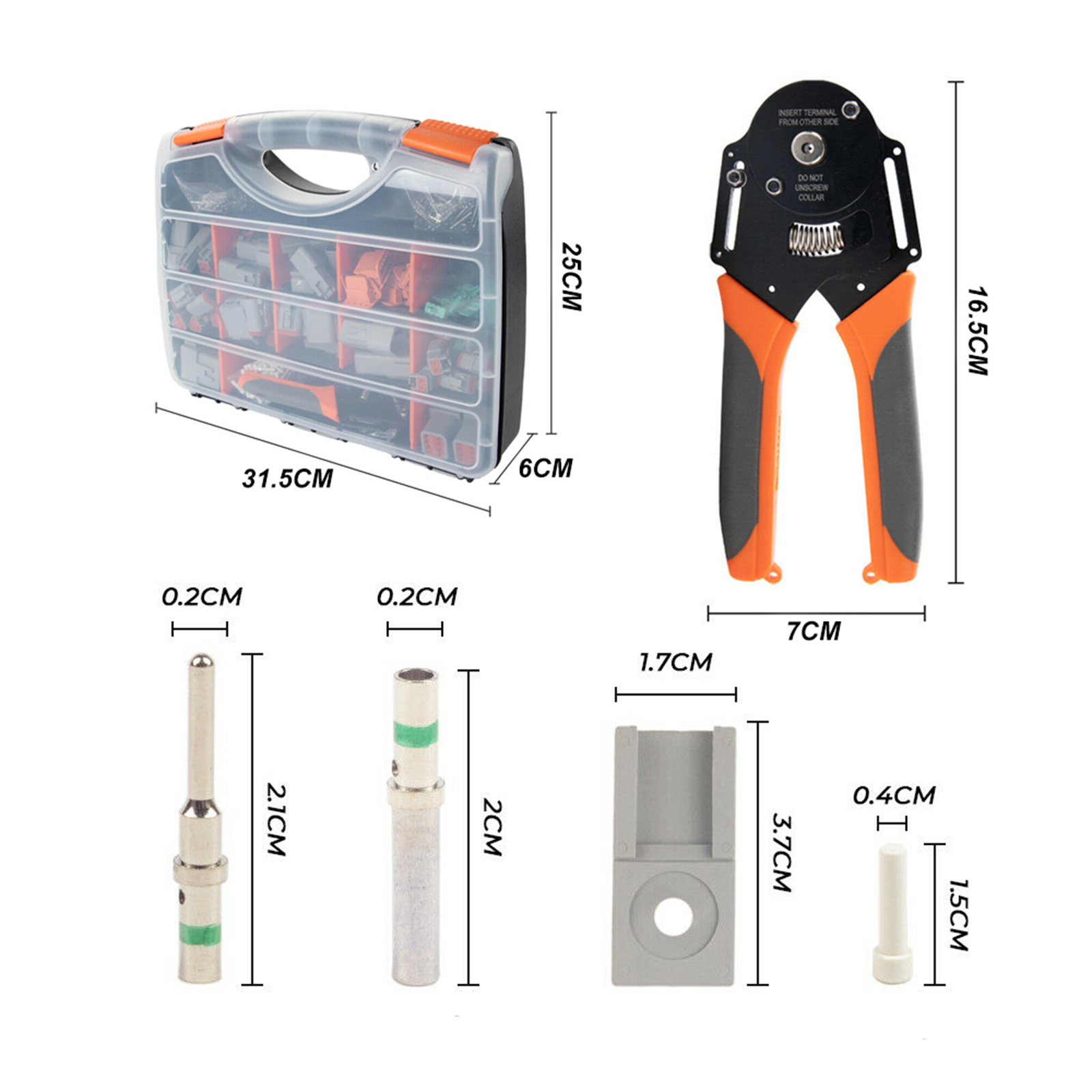

Size of Case Package: 31.5cm x 6cm x 25cm

Size of  Green band pins: 0.2cm x 2cm

Size of Green band sockets:0.2cm x 2.1cm

Size of tool crimps: 7cm x 16.5cm

Weight: 1.7kg

PARCEL CONTENT:

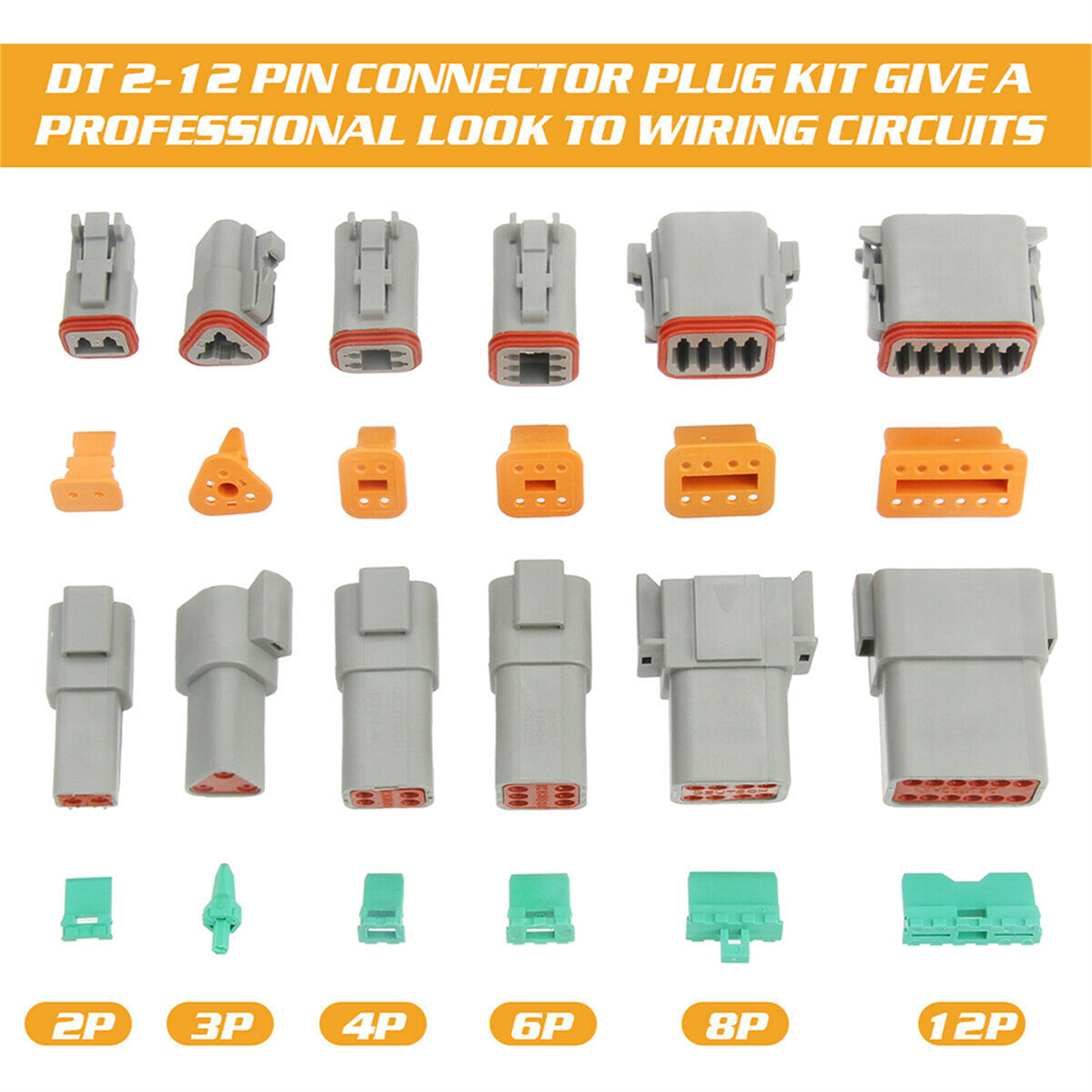

16 x DT04-2P 2-way receptacle with wedgelock
16 x DT06-2S 2-way plug with wedgelock
6 x DT04-3P 3-way receptacle with wedgelock
6 x DT06-3S 3-way plug with wedgelock
6 x DT04-4P4-way receptacle with wedgelock
6 x DT06-4S 4-way plug with wedgelock
6 x DT04-6P 6-way receptacle with wedgelock
6 x DT06-6S 6-way plug with wedgelock
2 x DT04-8P 8-way receptacle with wedgelock
2 x DT06-8S 8-way plug with wedgelock
1 x DT04-12P 12-way receptacle with wedgelock
1 x DT06-12S 12-way plug with wedgelock

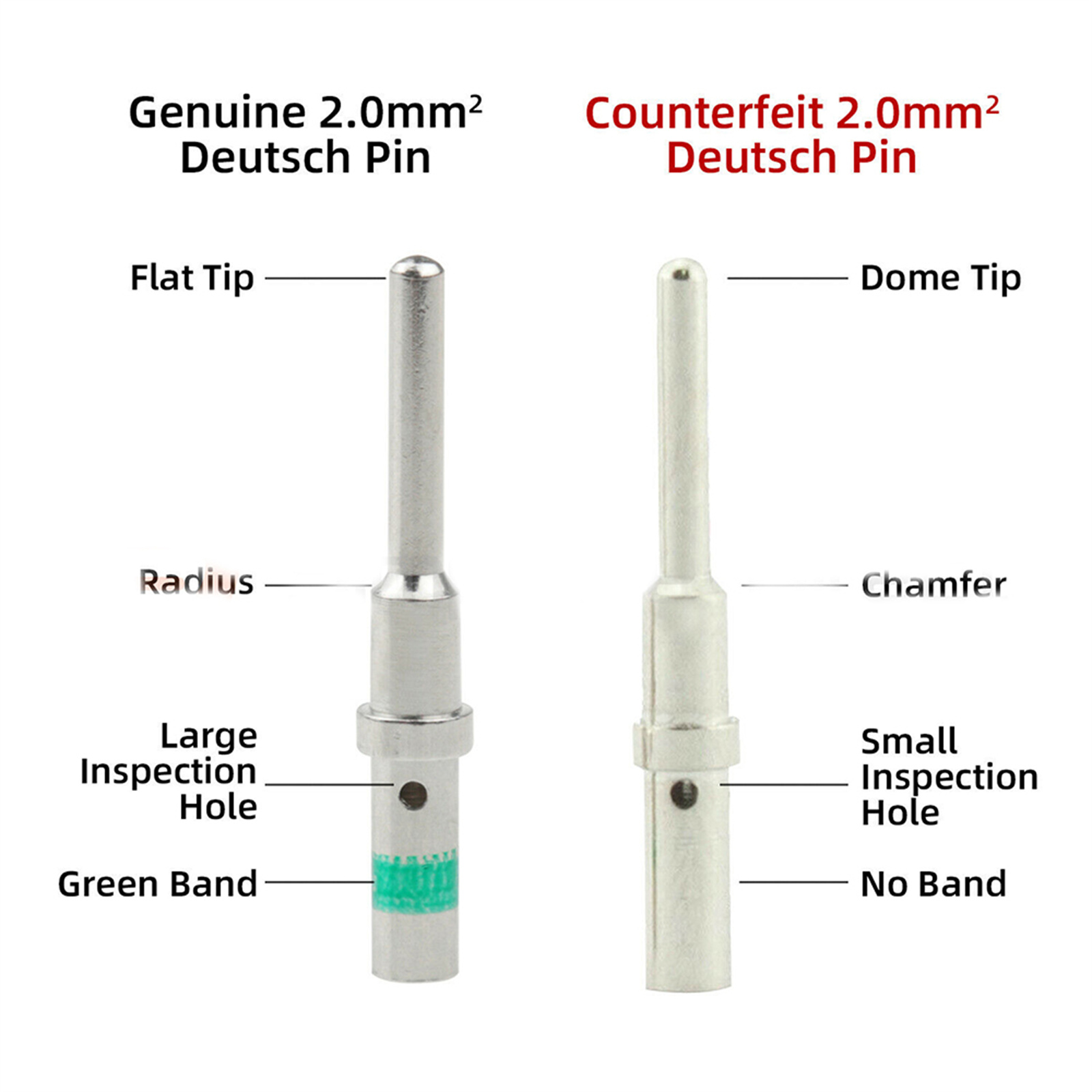

120 x 0460-215-16141 #16 Green band pins to suit 2.00mm 2 wire
120 x 0462-209-16141 #16 Green band sockets to suit 2.00mm 2 wire
160 x 114017 White sealing blanks
6 x 1011-026-0205 Mounting brackets (suits all but 8 way)

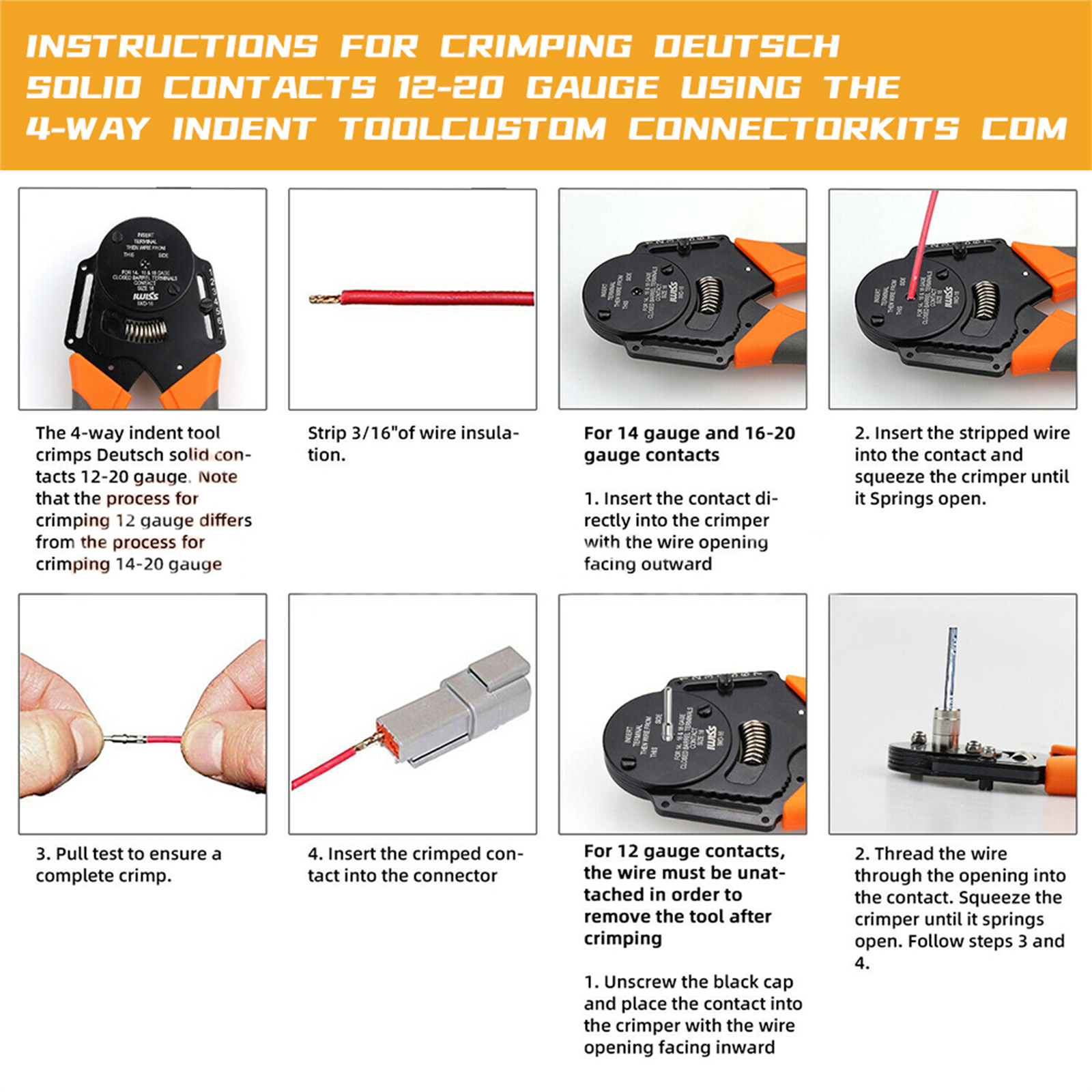

1 x Deutsch crimp tool

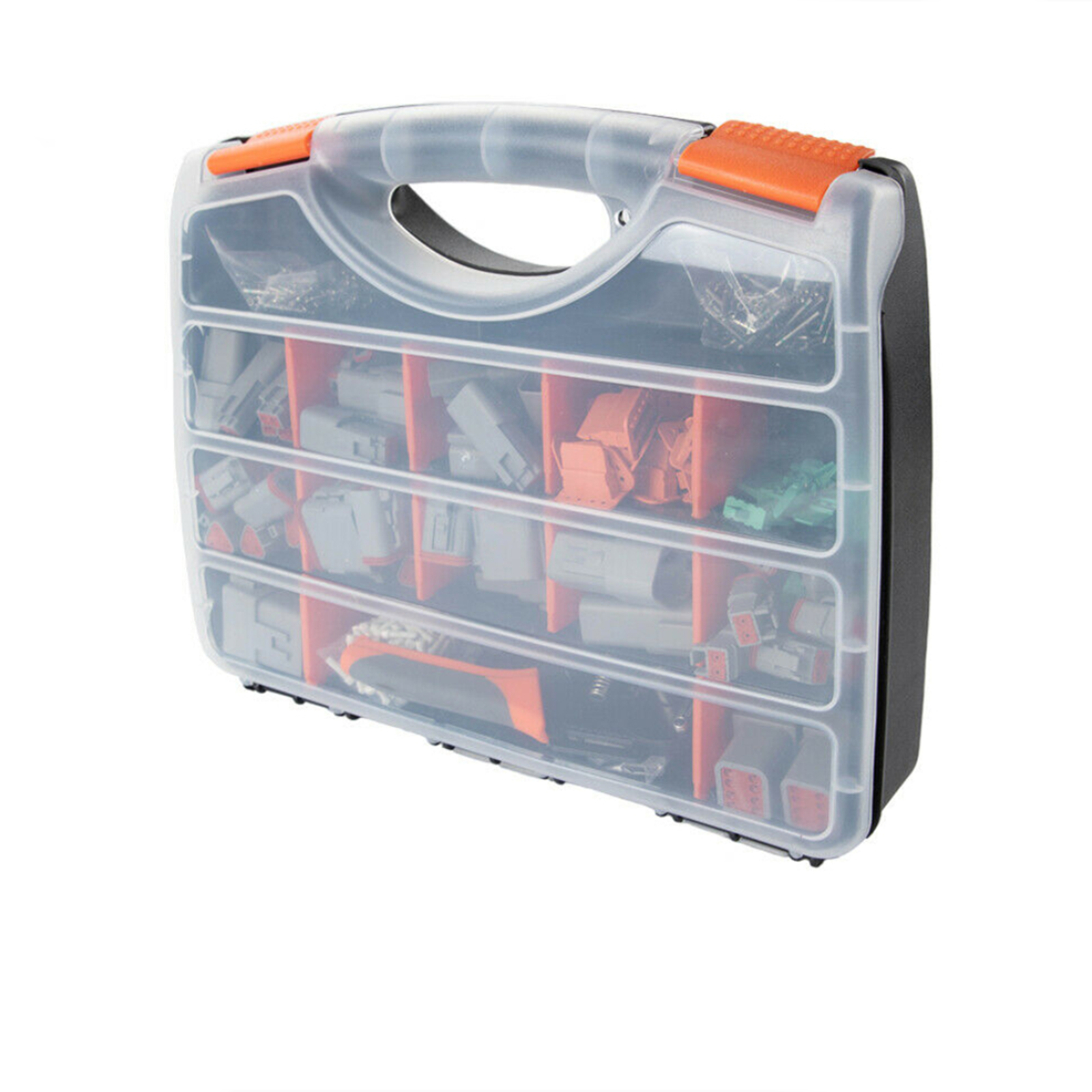

1 x 15 compartment heavy duty case with removable partitions
