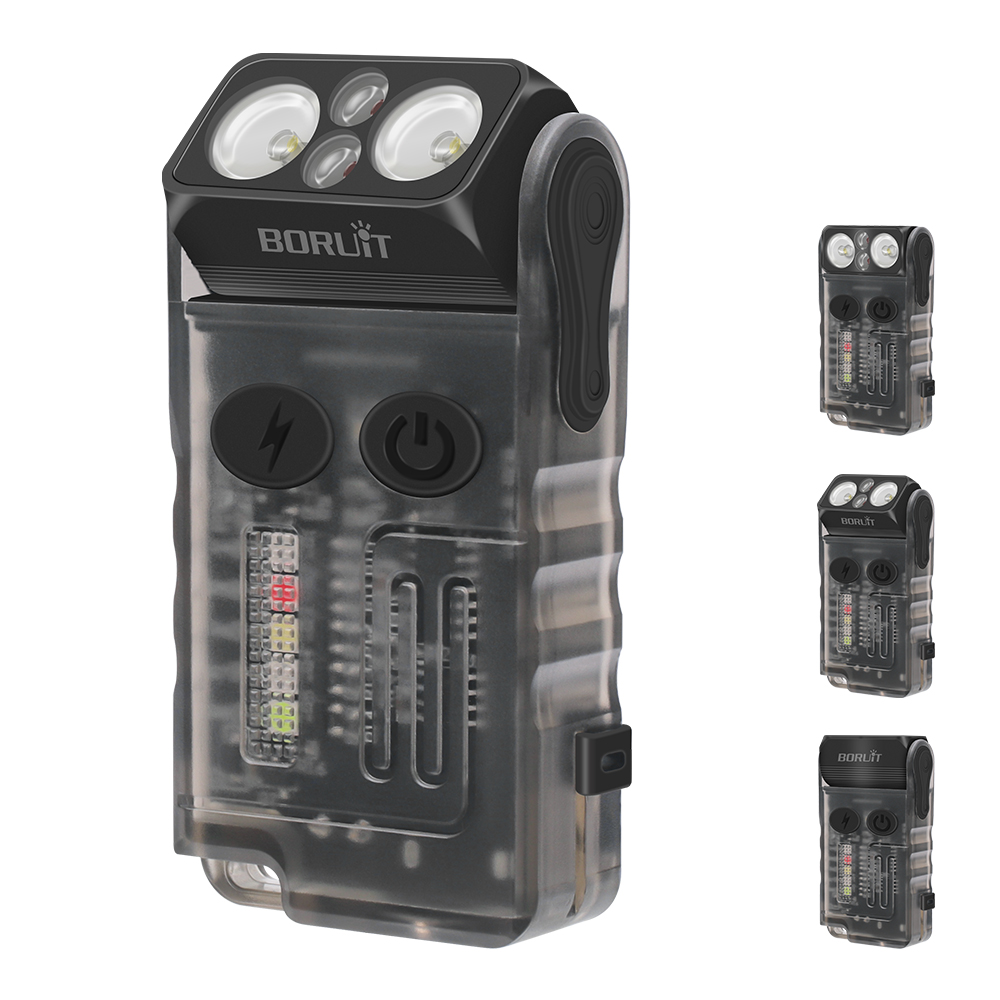

Product Model: V20
Material: Aluminum alloy + plastic
Light Output
Main Light White: Very Bright 800-200LM, High Brightness 600-150LM, Medium Brightness 300-80LM, Low Brightness 130-30LM. Red 50LM
Attachment: White 30L, Green 30LM, Red 15LM, Blue 5LM
Light source: Samsung white light 351B*2, 3535 red light*2, 3030 green light, 3030 blue light, 3030 purple light, 3030 red light

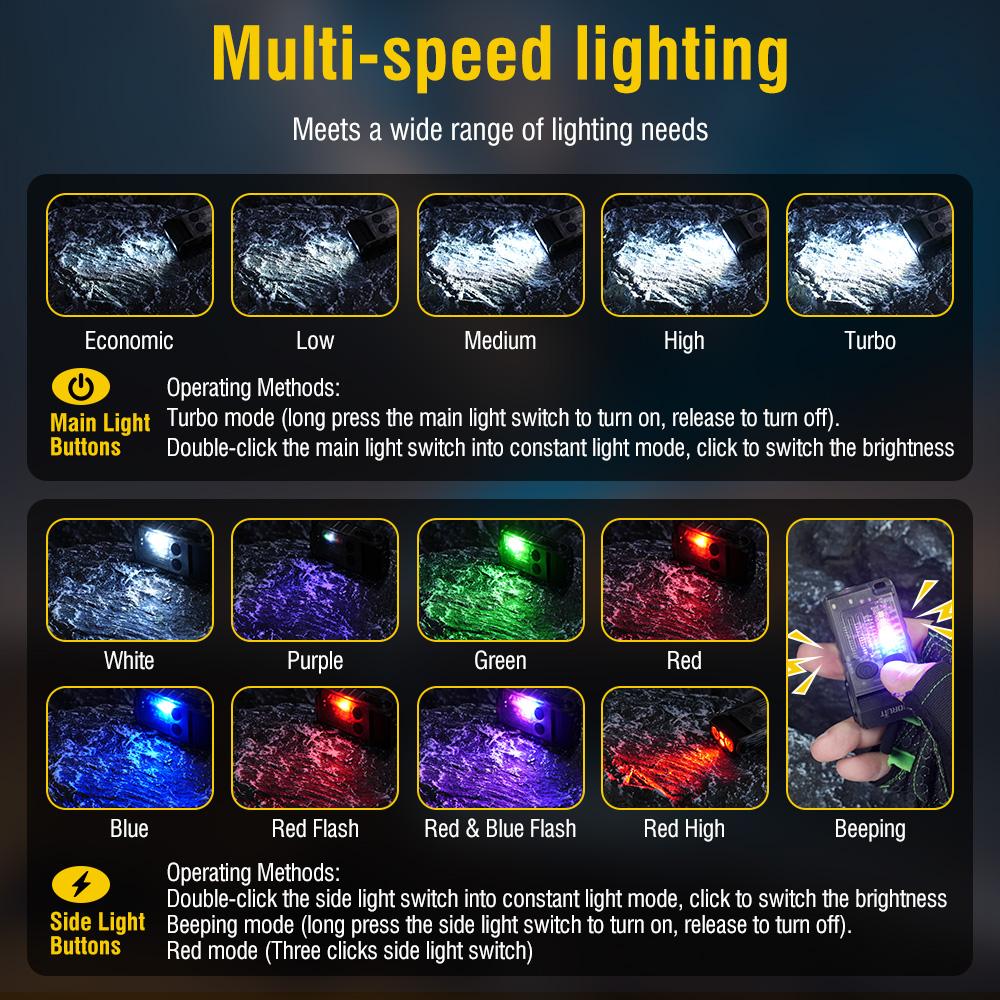

Function Double-click the main light switch: - Main light on: Brightness cycles through (low, medium, high) (long press to turn off), with memory retention. - In off state, long press to enter maximum brightness

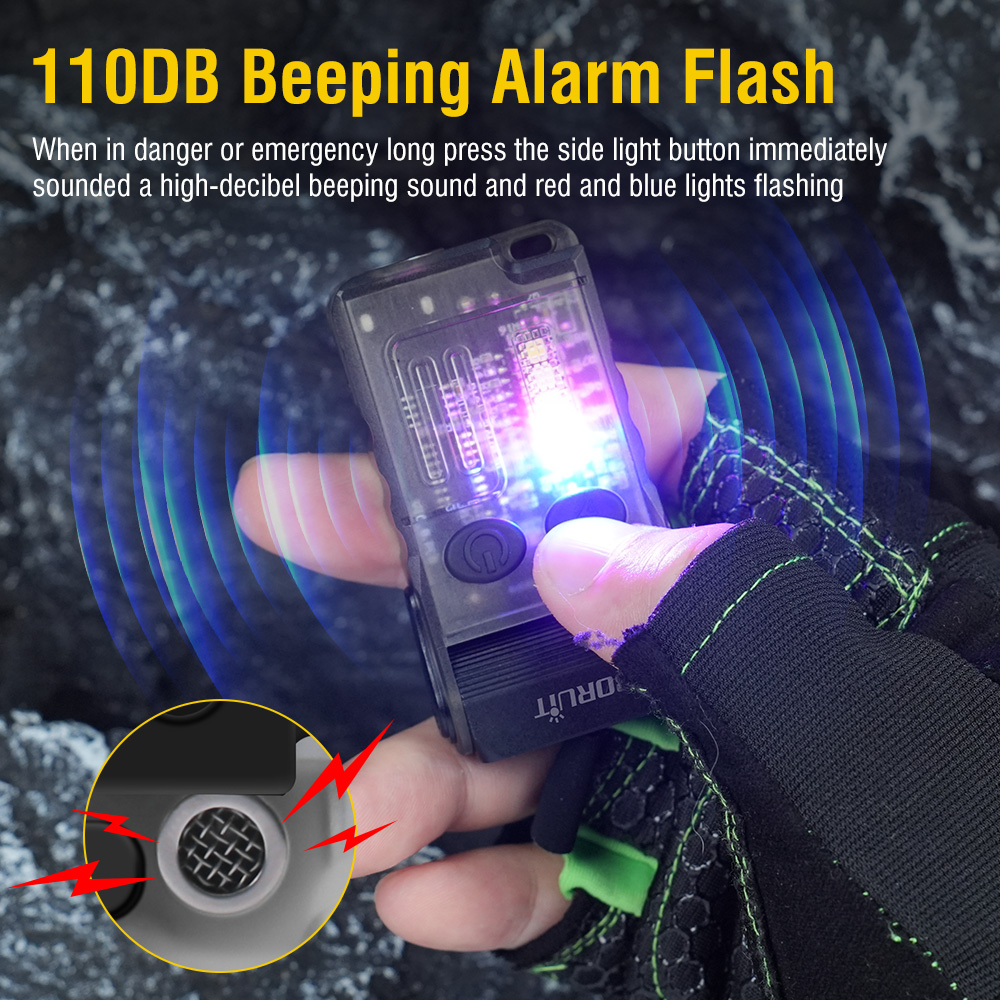

Double-click the attached light switch: Color light on: White - Purple - Green - Red - Blue - Red off blink - Red-blue blink cycle. Long press to power off with memory. Long press to enter alarm sound
Three taps to turn on the light: red light on (50LM)
Charging time: 2 hours
Battery life:
- Very bright: 150 minutes
- Dim: 33 hours
- Low bright: 810 minutes (13.5 hours)
- Medium bright: 390 minutes (6.5 hours)
- Main light high bright: 210 minutes (3.5 hours)
- Red light bright: 180 minutes (3 hours)
"
Side light: White: 17 hours, -Purple: 16 hours -Green: 17 hours -Red: 17 hours -Blue: 16 hours -Red flash: 38 hours -Red and blue flash: 35 hours

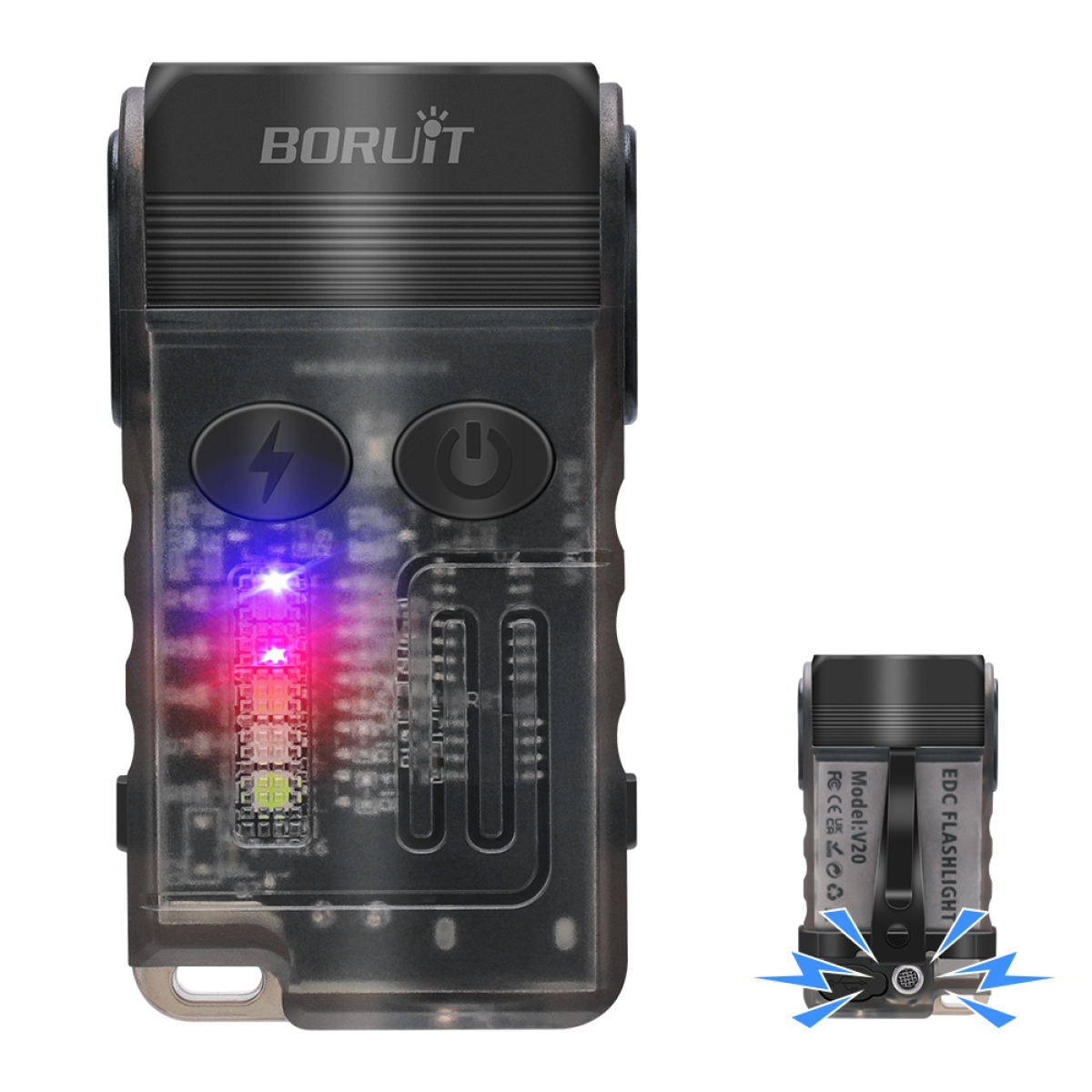

Battery display: charging, discharging indicators. Red light for charging, green light for full charge.
The discharge indicator lights green when the voltage is above 3.2V, turns red when below 3.2V, flashes red when below 2.9V, and turns off when below 2.7V.
Battery type: 103,035
Battery capacity: 1100 milliampere-hours
Charging interface type: Type-C
Charging voltage: 4.5-5.5V
Working temperature: up to 43°C

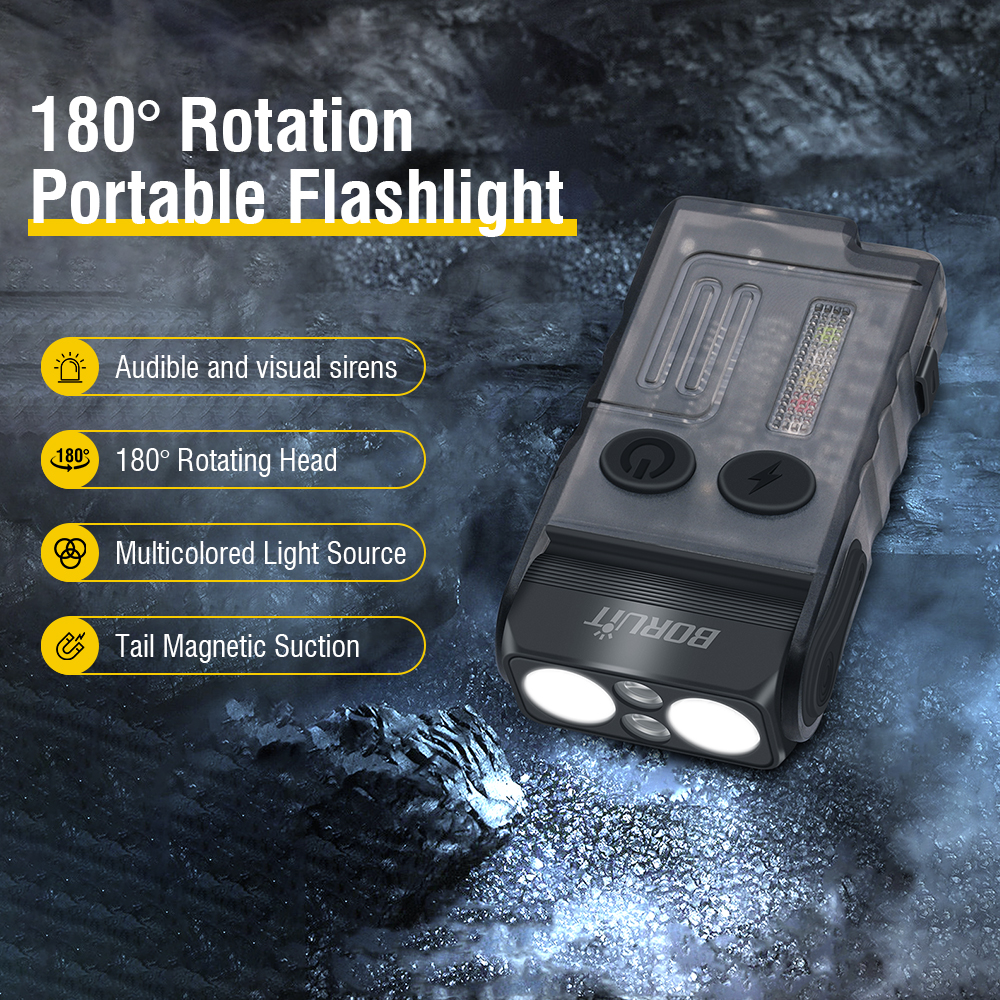

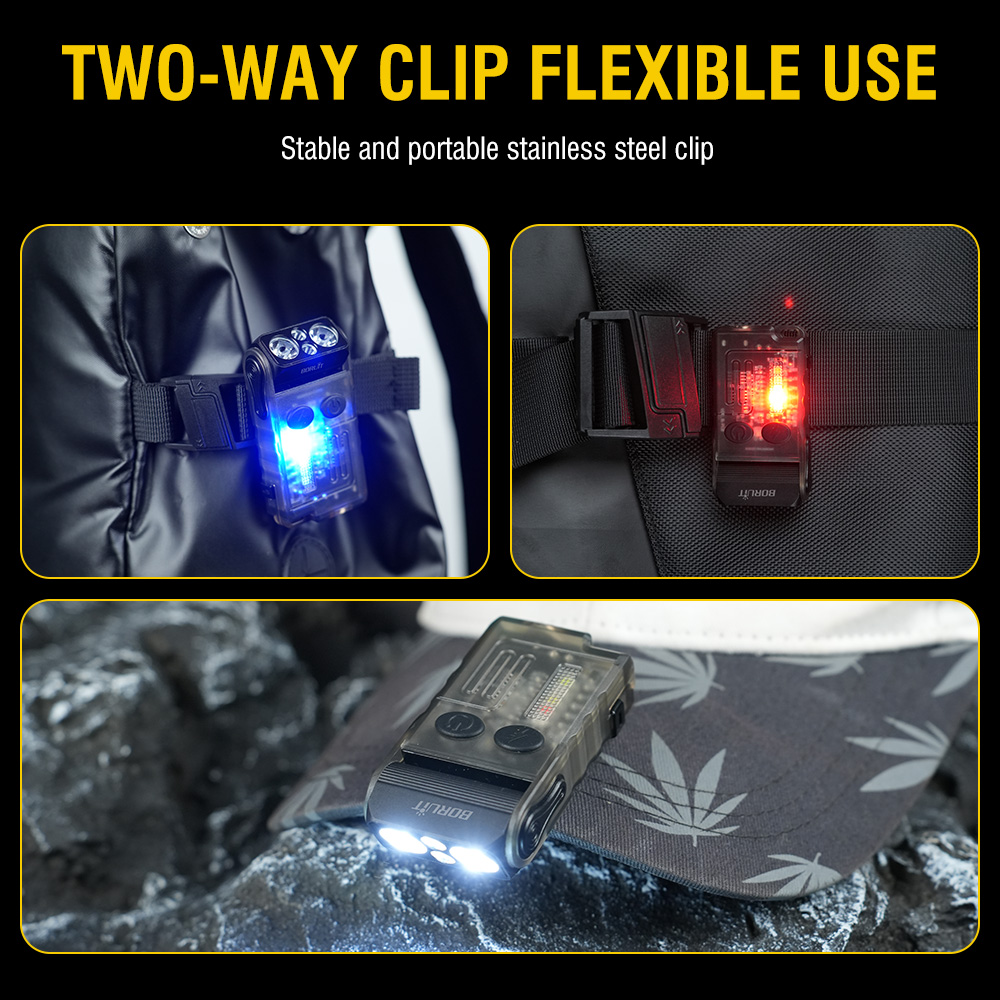

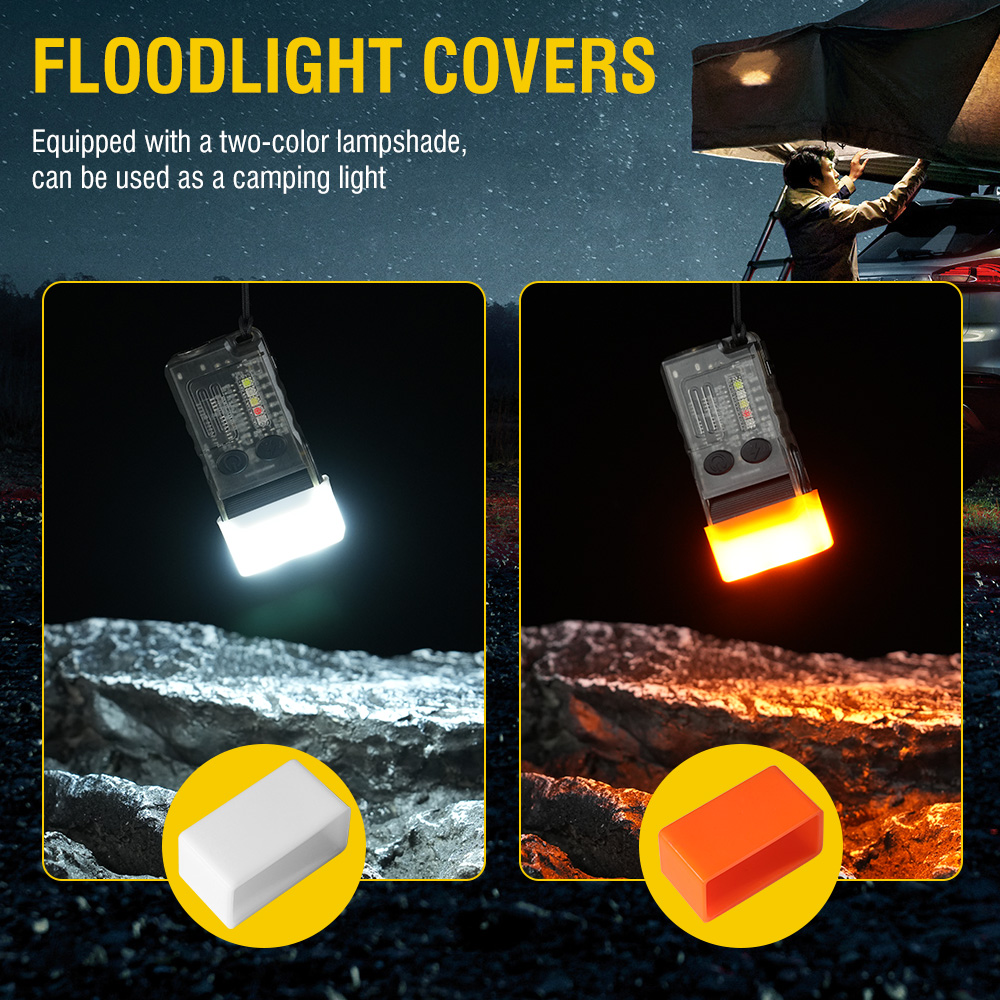

Special Features: Bidirectional clamp, ambient light cover, audible warning function
Color: Black / Fluorescent White
Focusing: None
Waterproof rating: IP67

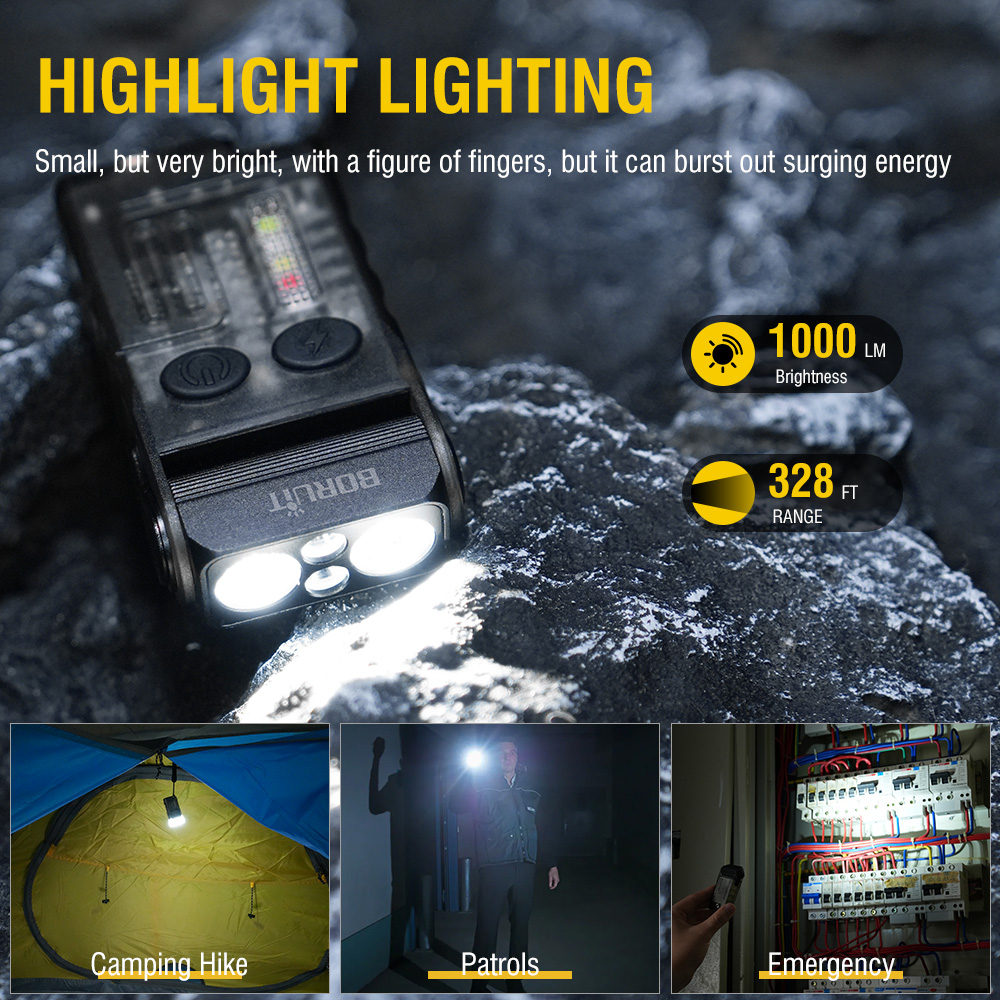

Irradiation distance: 70M

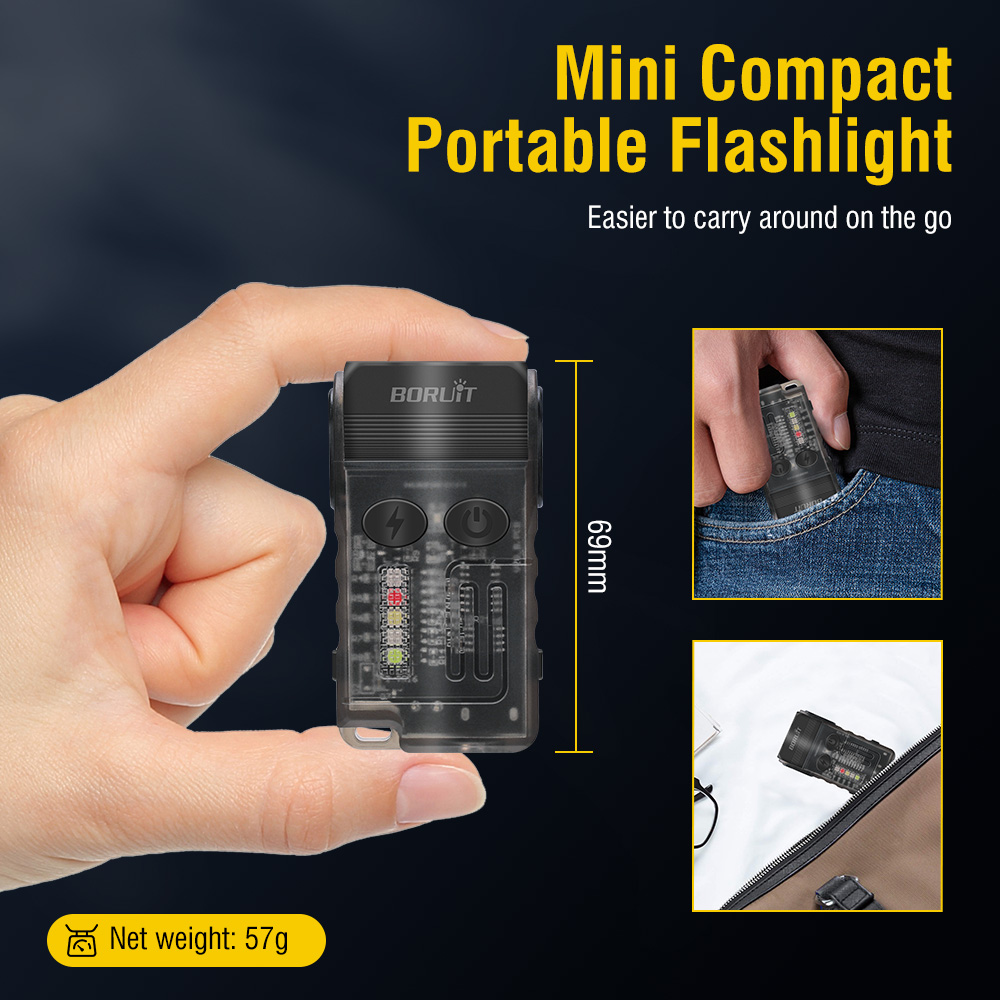

Net weight of product: 57g (includes battery and clip)
Gross weight of the product
Product dimensions: 69mm * 38mm * 16mm
