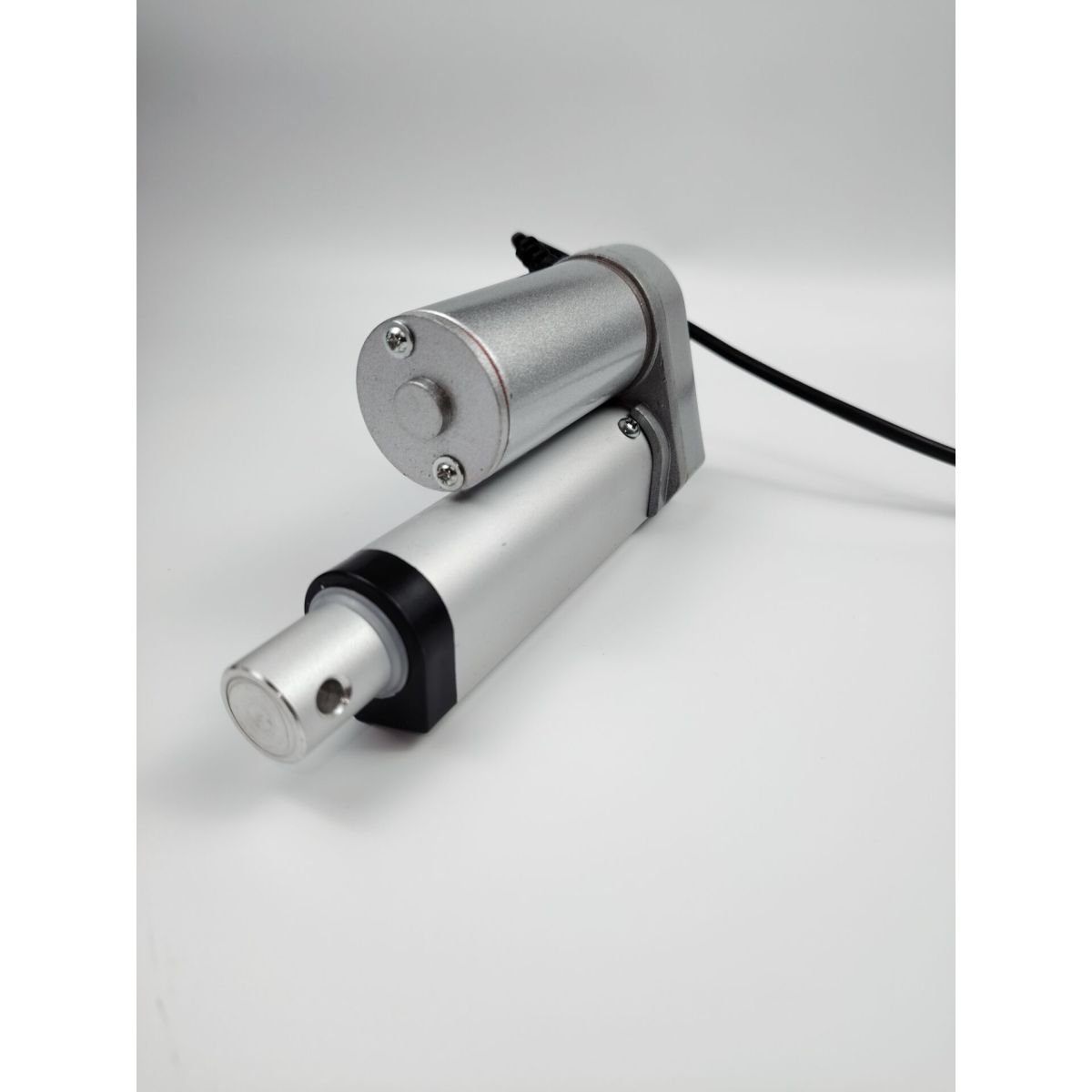

Type JS - TGZ - U1

Application: ship, automobile, industrial machinery, automobile, window, cleaning, other

1) Voltage: 12VDC 24VDC permanent magnet

2) Motor power: 30W

3) Standard stroke: 50.100.150.200.250.300 350.400.450.500

4) Standard installation size: stroke + 105mm

5) Load capacity: 1000N

6) No-load speed: 6mm / s

7) Work efficiency: 10%

8) Ambient temperature: -5 C +50 C°

9) Protection grade: IP54

10) Built-in limit switch can not be adjusted after delivery

11) Low noise design, dB < 53

12) There is nylon gear structure inside.

Precautions:

The inner nylon gear should not be overloaded

Method of use

: the push rod can not overload the use of overload will affect the service life of the motor should be selected higher than the thrust itself

: DC push rod motor with positive and negative pole conversion + stretch - retract

: The putter moves in a straight line

: The upper and lower holes of the push rod are for installation
