Application:

fit for Toyota RAV4 2.4L L4 2006-2012

fit for Toyota RAV4 3.5L V6 2006-2012

OE/Part number:

2322028090, 23220-28090
2322031120, 23220-31120
770200R010, 77020-0R010
770200R020, 77020-0R020
C0729M
E9003M
E9004M
FG1283
FG1554
P76778M
P76783M
SP9039M
SP9048M

Specification:

Drive Type: Electrical

Fuel Type: Gasoline

Voltage(V): 12

Flow Rate(Gallons/Hour): ≥32G/H

Pressure(MPa): 0.35±0.01

Inlet Type: /

Inlet Quantity: 0

Outlet Type: SAE J2044 2009

Outlet Quantity: 1

Material: Plastic(POM)

Housing Material: Plastic

Fuel Sending Unit Included: Yes

Fuel Pressure Sensor Included: No

Fuel Level Sensor Included: Yes

Float Included: Yes

Fuel Reservoir Included: Yes

Fuel Strainer Included: Yes

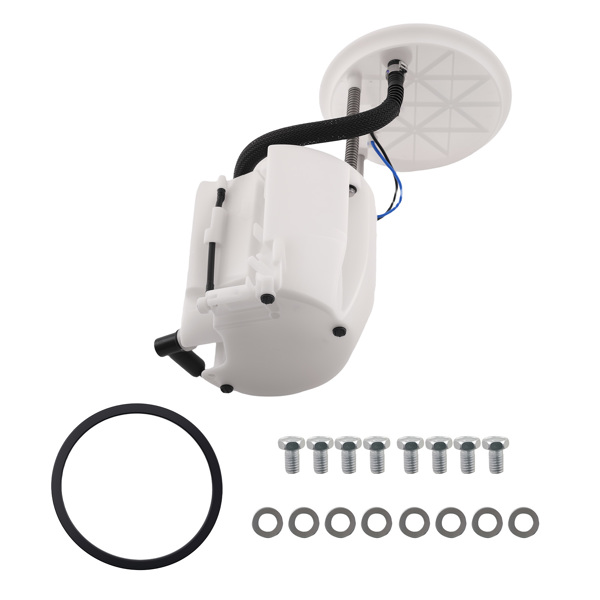

Seal Ring Included : Yes

Internal Or External Strainer: Internal

Placement on Vehicle: Rear (Fuel Tank)

Package included:

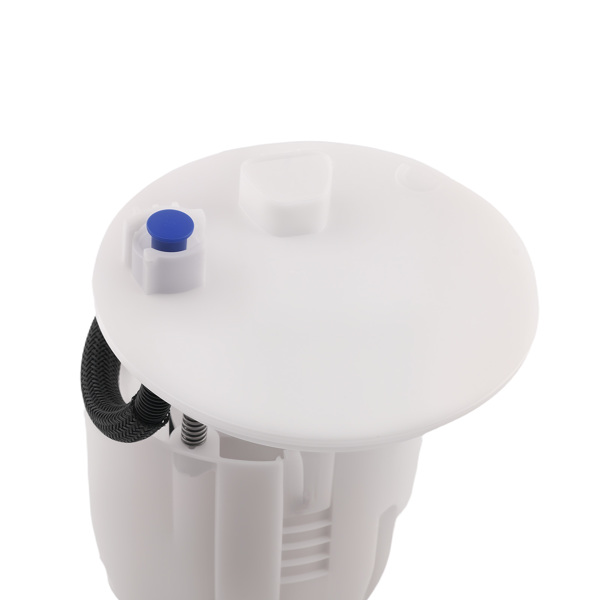

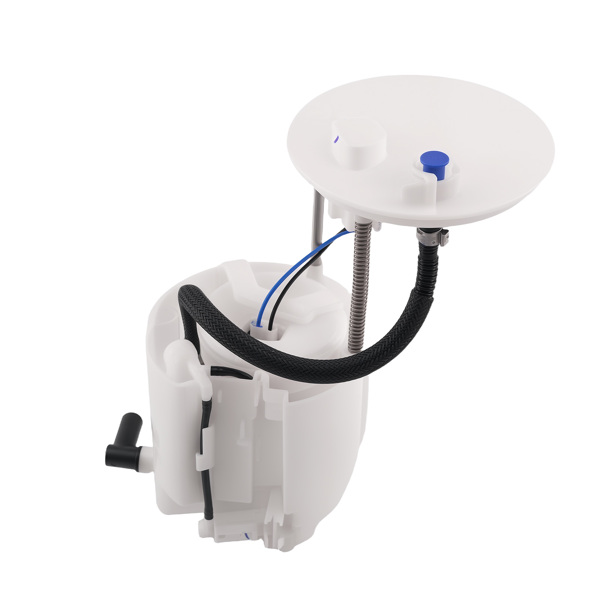

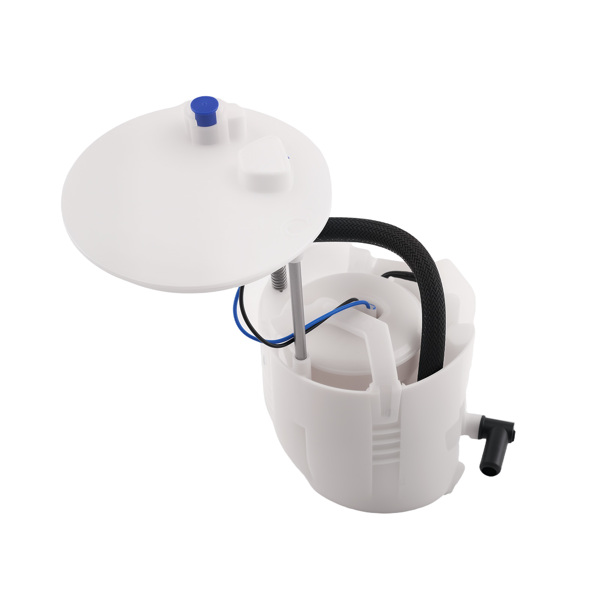

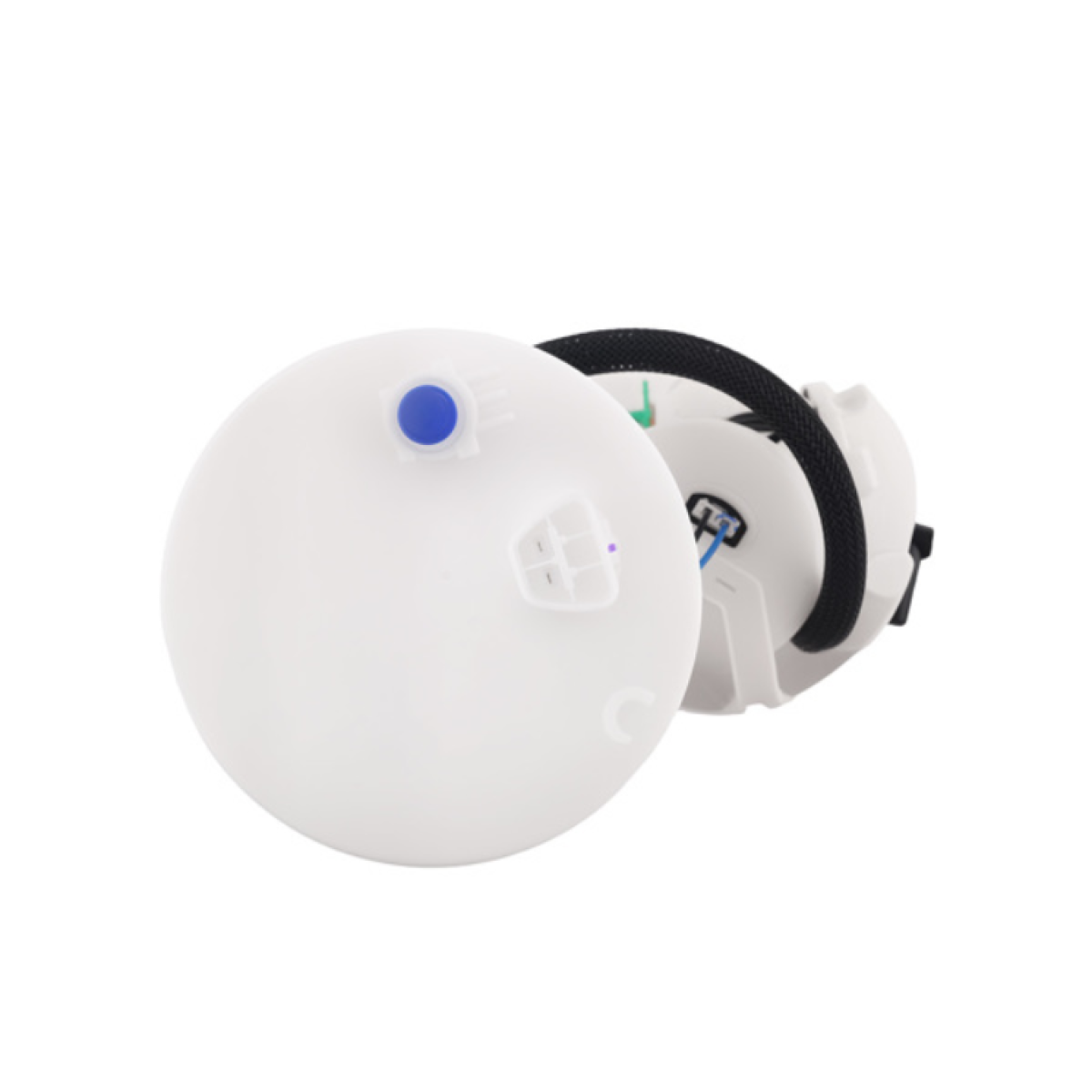

1x Fuel Pump Module Assembly
