Description:

Electrical Capacitance Meter Anti-burn Hz Ohm Diode Meter 6000 Counts Rechargeable Flashlight Lighting LCD Screen for Automotive



Features:

1. Digital multimeter: This product is a digital multimeter with stable performance and reliable quality. The instrument adopts LCD display screen with analog bar display, and 6000 count pocket true effective value automatic scanning digital instrument.

2. Function: It can automatically identify and measure signals according to different input voltage/current/resistance.

3. characteristic: stable performance, high accuracy and clear reading.

4. Additional convenience function: It also has the additional convenience function of flashlight test.

5. Application: It is a great tool and instrument for factories, teaching and electronics enthusiasts.



Specifications:

Model Number: Smart Digital Multimeter

Power supply: built-in 3.7V 1200mah polymer lithium battery

Product size: approx. 15x7.5cm/5.9x2.95in

Color: as the picture shownn

Display Type: Digital display

Parameters:

Function Range Resolution Accuracy

DC voltage 0~1000V 0~1V ± (0.8%+10)

AC voltage 0~750V 0~1V ± (1.0%+10)

AC current 0~10A 0~0.01A ± (2.5%+10)

DC current 0~10A 0~0.01A ± (2.5%+10)

Capacitance 0nF~100mF 0nF~0.1mF ± (5.0%+5)

Resistance 0Ω~60MΩ 0Ω~0.01MΩ ± (2.5%+5)

Temperature℃ -40℃~1000℃ 1 ℃ ± (1.9%+5d)

Temperature°F -40 °F~1832°F 1°F ± (1.9%+6d)

Hz 0-999.9 kHz 0~0.1 kHz ±(0.8%+3d)

Type 681 maximum count 6000 counts

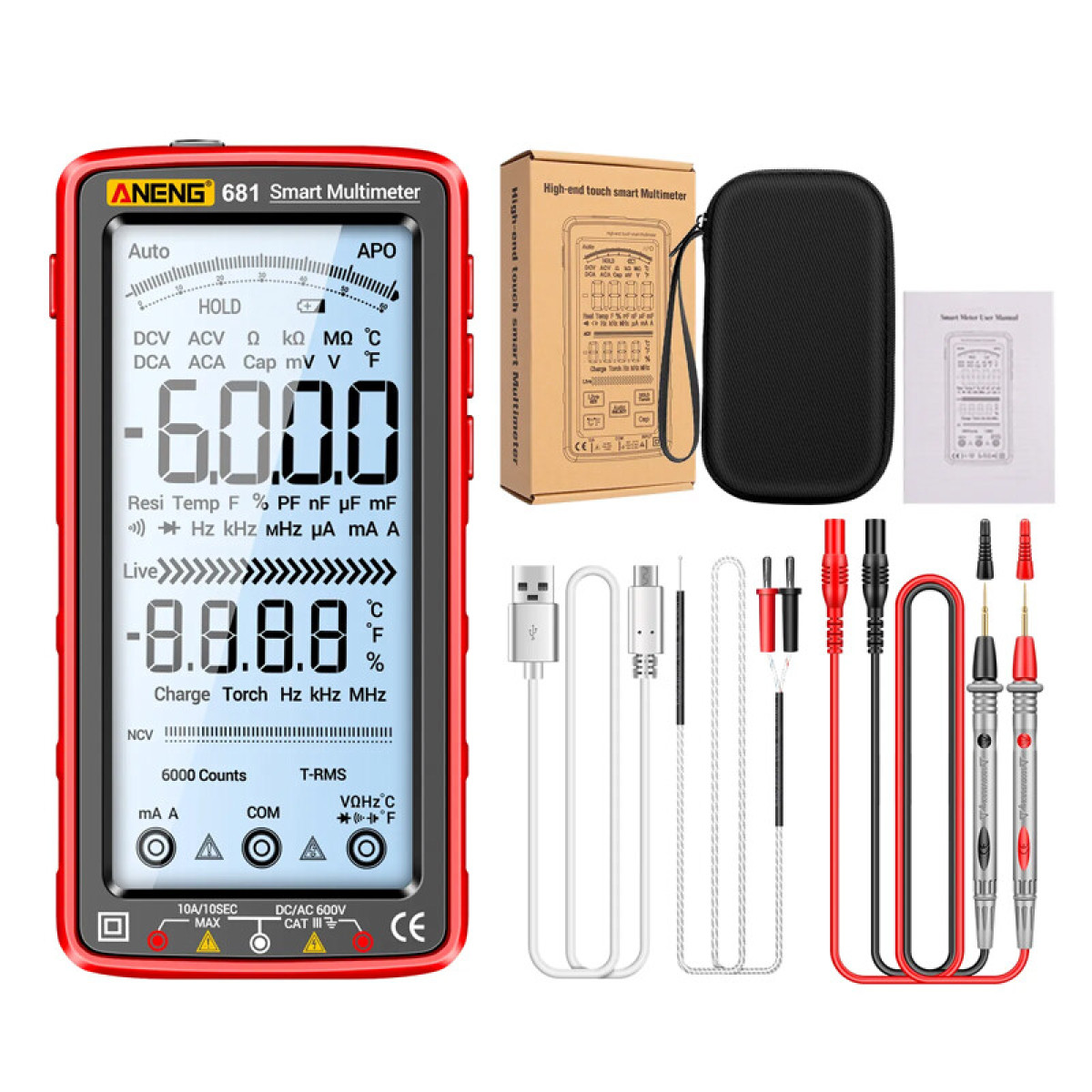

Package Included:

1 x Digital multimeter

2 x Gold-plated special point measuring line

1 x Thermocouple

1 x USB Type-c charging cable

1 x Storage bag

1 x User Manual
