| Brand | Unbrand |
|---|---|
| Manufacturer Part Number | 8523M35008F |
| Placement on Vehicle | Roof |
| Surface Finish | black powder coated |
| Type | Roof Rack |
| Fitment Type | Direct Replacement |
| Material | Aluminum |
| Color | Black |
| Features | Removable, Waterproof |
| Weight Capacity | 100lbs |
| Number of Pieces | 2 |
| Manufacturer Warranty | 1 Year |
| Item Length | Front 46.75"-47.13"/ Rear: 45.13"-45.75" |
| Item Width | 2.3 inch |
| EAN | Does not apply |
ONE YEAR WARRANTY
Specifications:
Load Capacity: 100LBS
Color: black powder coated

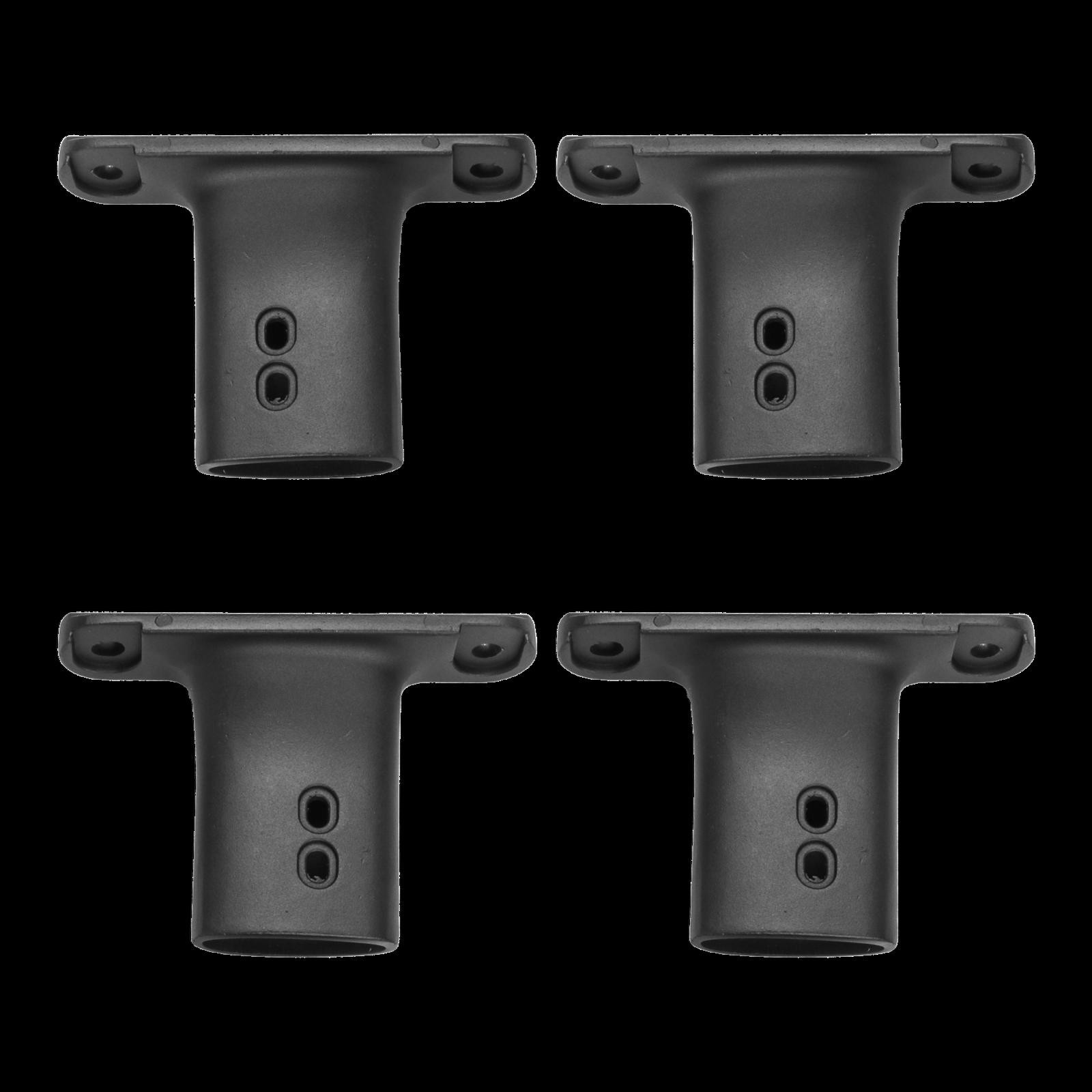

Material: aluminum alloy (body+feet)
Instruction is included, professional installation is highly recommended.
Fitment:
Ford Explorer 2016-2019 （with factory roof side rails）
Grooved side rails are required for cross bar installation, some car models only have a roof molding and these cross bars will not fit.
1.Please check that this product fits your vehicle before installing
2.Check the roof rack cross bar mounting bolts frequently, and re-tighten them if necessary
3.Distribute the weight of the cargo evenly, and do not exceed the maximum weight capacity of 100 lbs.
Installation:
-On each roof rack rail, remove total 8 covers bolts.（4RH and 4 LH）
-Position the rear crossbar onto the left and right roof rack rail(3,4/5,6 position), and adjust the right stay in or out until it fits securely into the position

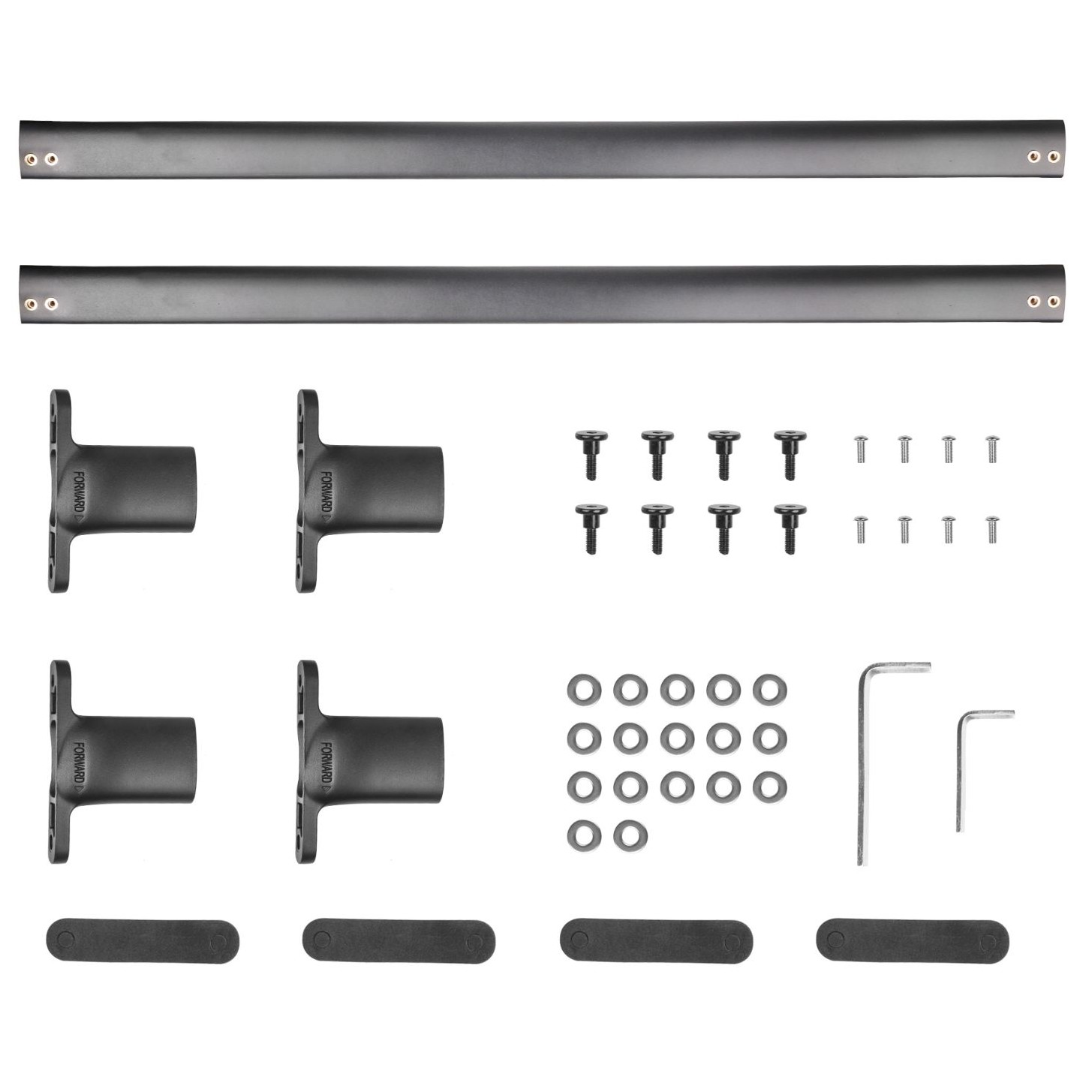

-Secure the rear crossbar to the roof rack rails using four bolts and Allen Key in the package
-Position the front crossbar onto the left and right roof rack rail(1,2 position), and install the front crossbar the same way
-After installing the crossbars, rock each rack to make sure it is secure

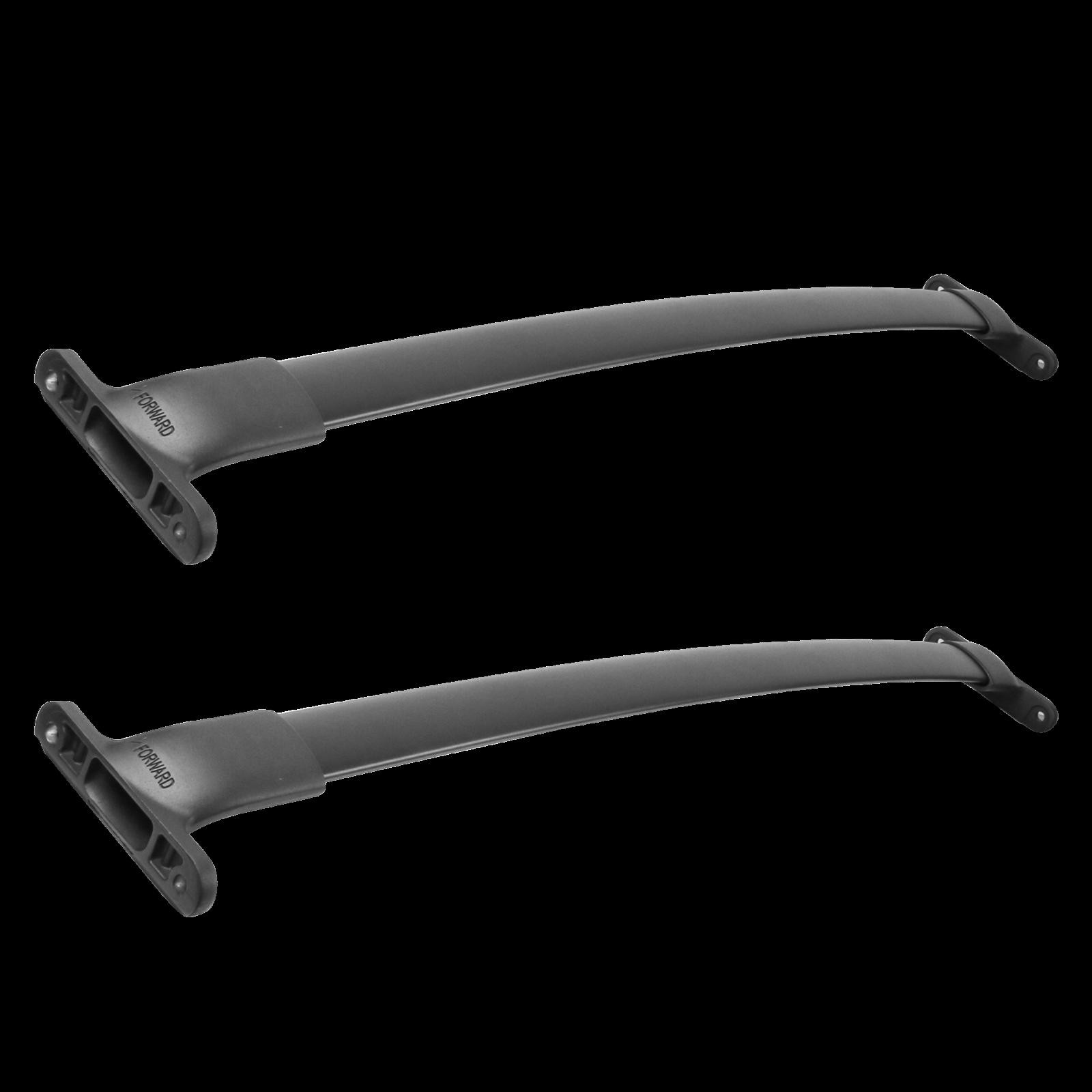

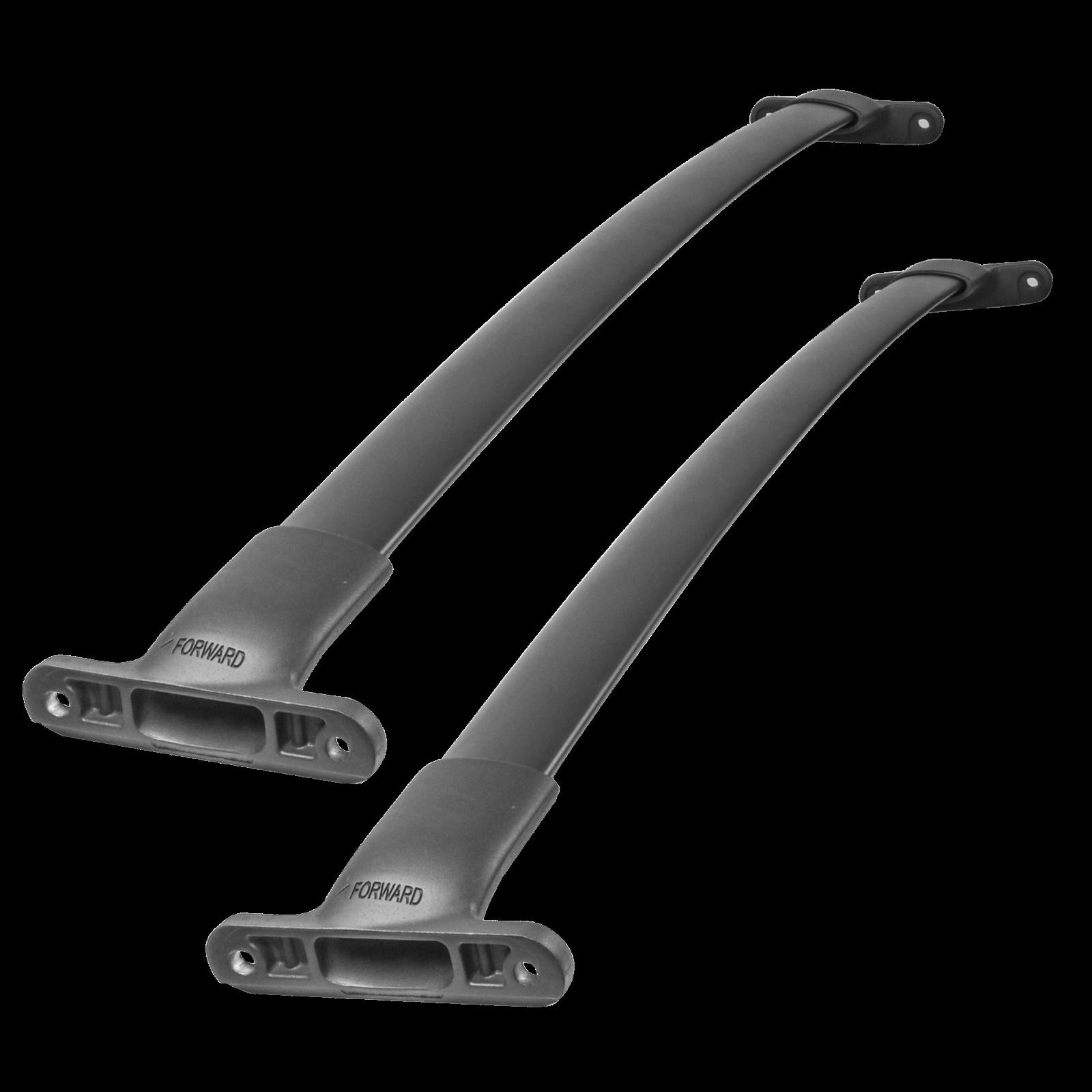

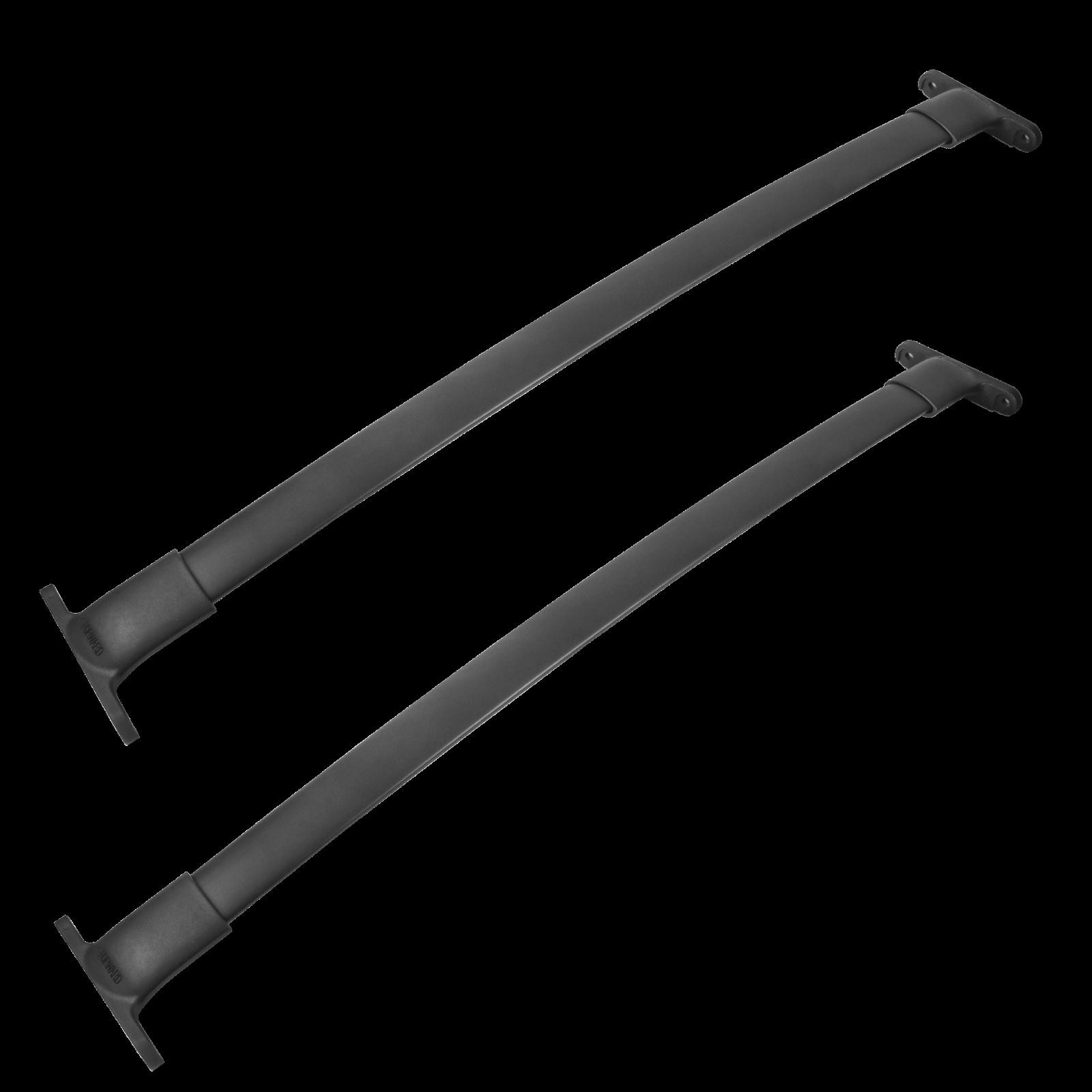

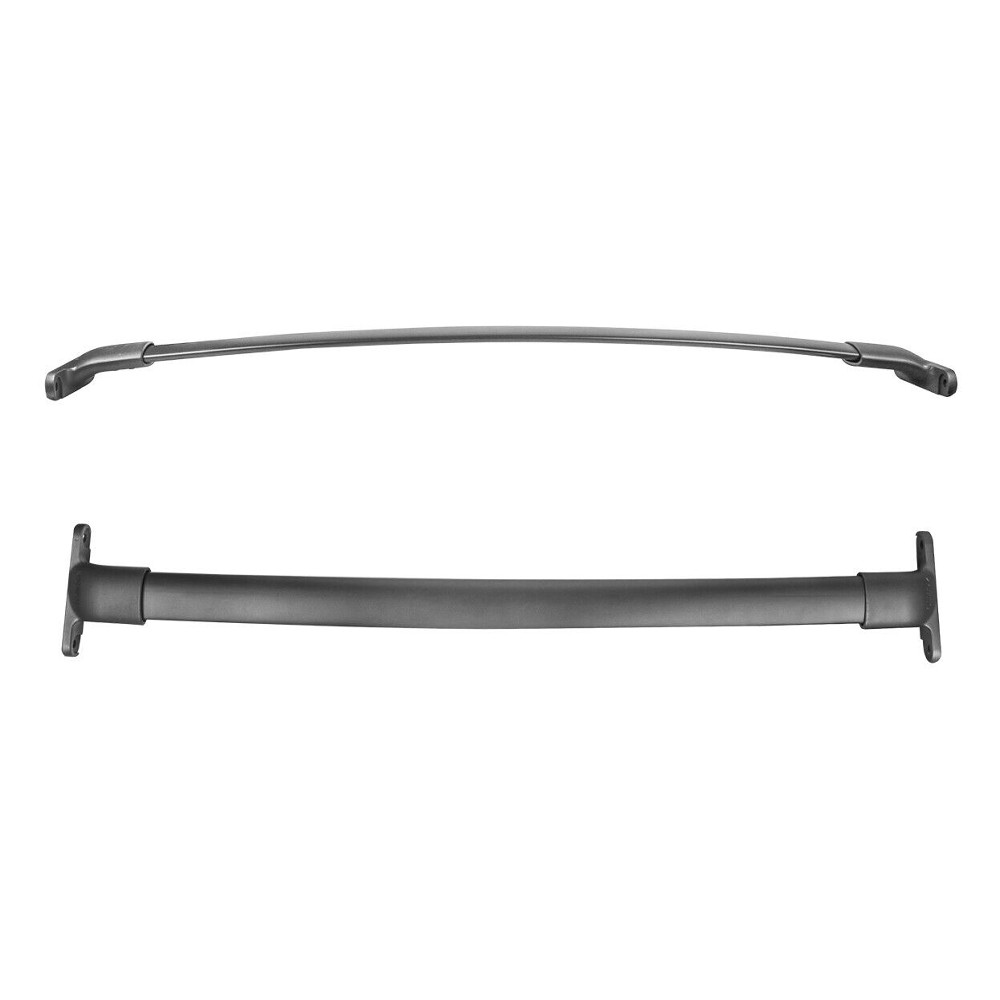

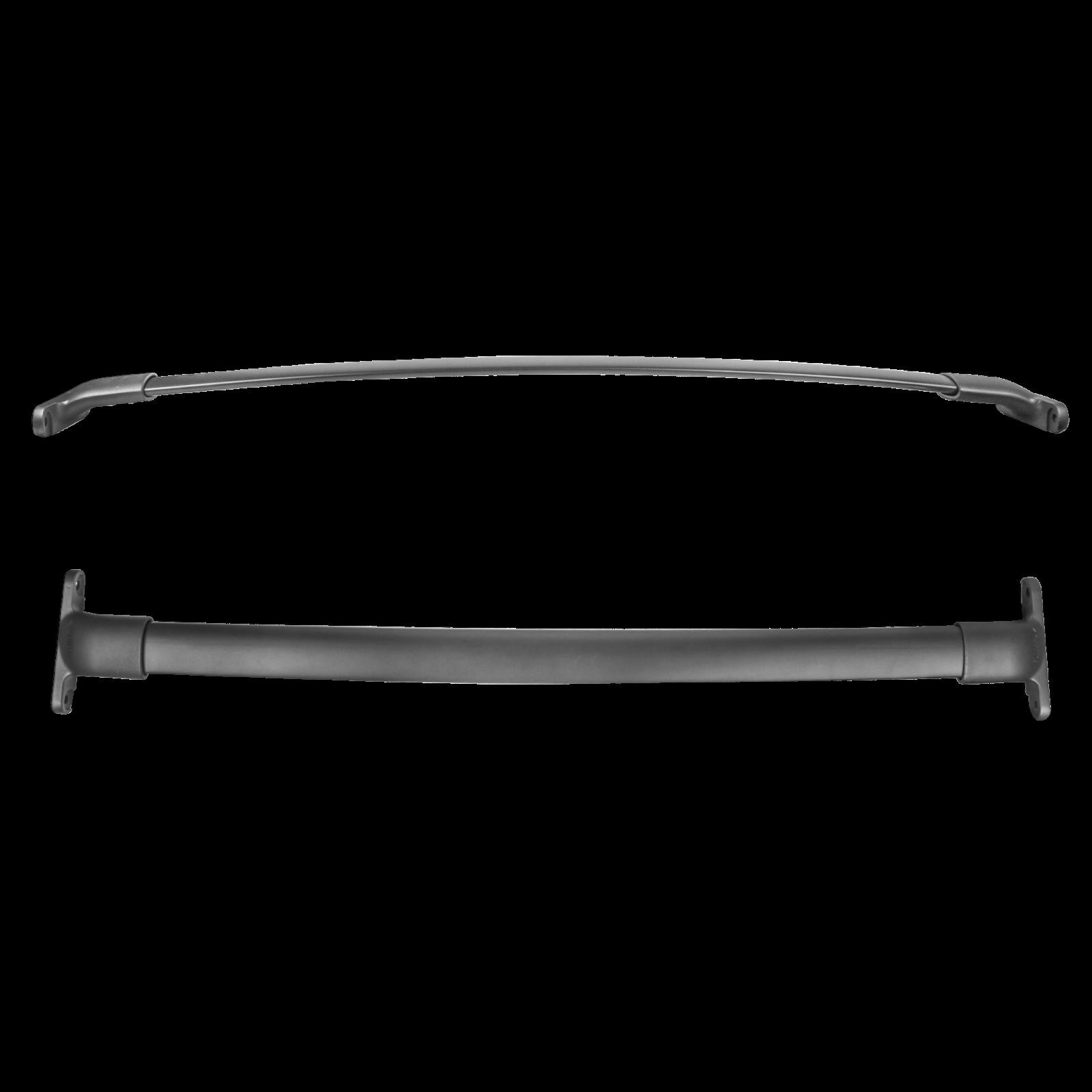

2PCS Top Roof Rack For 2016-2017 Ford Explorer Crossbars Luggage Package Carrier
