Description:

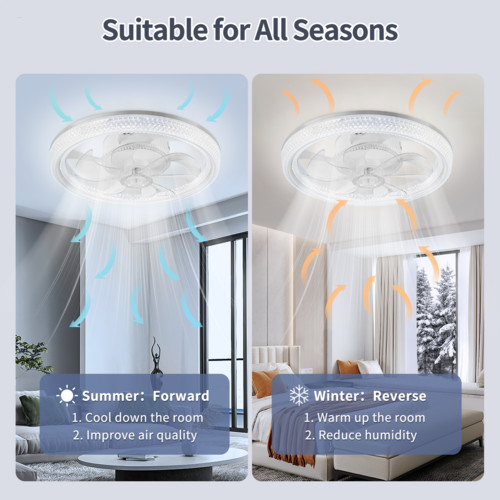

----This reversible fan with light offers two airflow modes: downdraft for cool air circulation in the summer and updraft for warm air in the winter, saving energy. This bladeless ceiling fan with light uses a pure copper DC motor for smooth operation and powerful wind. Its low-noise design creates a comfortable sleeping environment and improves sleep quality for your family.

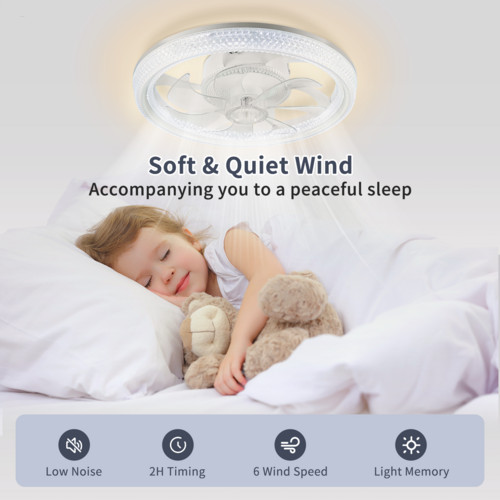

----This lighted ceiling fan features a lower base, shortening the distance between the blades and the ceiling, protecting you from blade damage, making it safer than traditional ceiling fans. It's ideal for rooms with low ceilings and bunk beds.
----This LED ceiling fan with light and remote control offers a variety of lighting options, from white to warm, bright to dim. The upgraded LED light is more energy-efficient and less glare-prone.
----Dimmable LED: This ceiling fan with light and remote control offers three colors and brightness options from 10% to 100%, allowing you to customize the lighting to suit any mood.
Specification:
Color: White

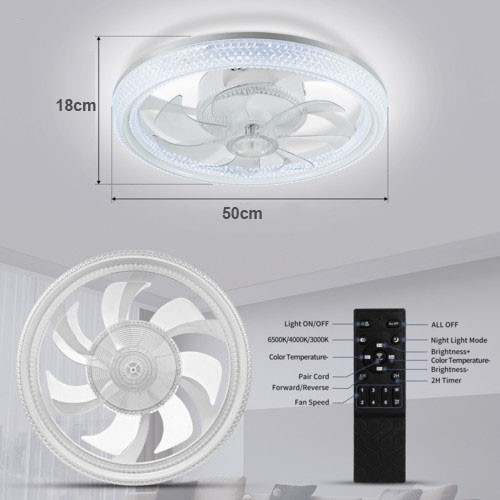

Dimensions: Air outlet 35cm / Height 18cm / Overall diameter 50cm
Lamp Material: ABS
Shade Material: Acrylic
Number of Blades: 7
Blade Material: PC

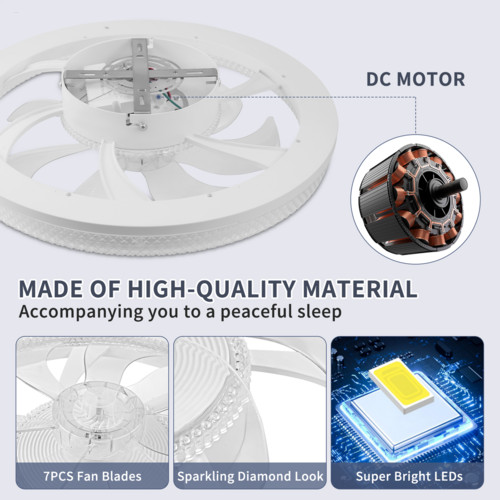

Motor: DC Copper Motor
Voltage: AC220-240V
Power: 30 × 2W LED + 30W motor
Wiring: One live wire, one neutral wire
Control options: Mobile APP + Handheld remote control

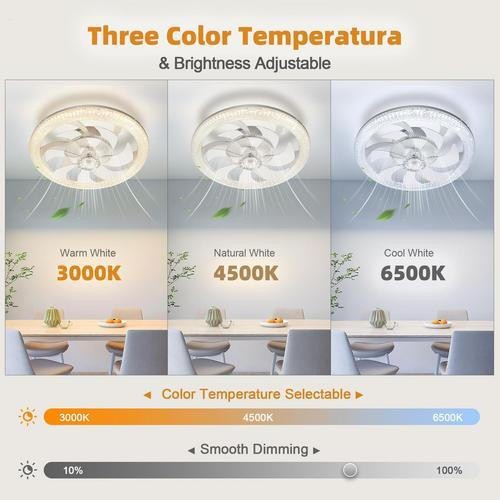

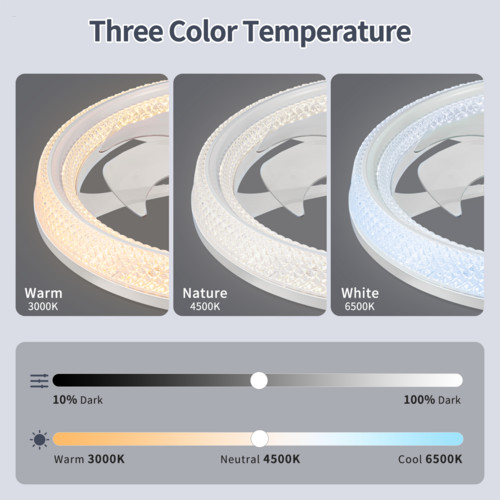

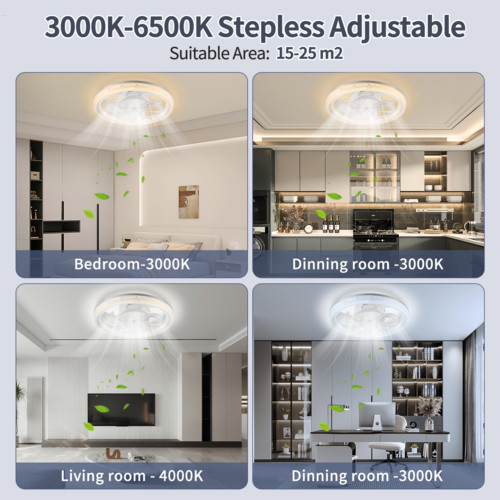

3-color Dimming: 3000K-4500K-6500K, memory function
6 speed settings: 1-6
Timer: 1h/2h/4h
Package included:
1 * Fan Light
1 * Manual
1 * Remote Control (Excluding batteries)
1 * Screw Pack
Installation Steps:
1.Align the position and drill holes.
2.Align the position and fix the cross bracket.
3.Connect the power supply and align the holes on the lamp base.
4.Pass screws through the aligned holes to match those on the cross bracket, then tighten firmly.
Installation Precautions:
1. Ceiling fan not running
(1) Check for poor contact of the fan power wiring.
(2) Confirm the fan supply voltage is normal.
2. Fan abnormal noise
(1) Check all fan screws are fully tightened.
(2) Check if the motor rubs against other parts while operating.
