Product Information:
Order number: two-way three-way ball valve
Item No.: Two-way Three-way Ball Valve
Model: LLQF
Body material: brass
Working temperature: 95
Nominal diameter: DN15-DN50 (mm)
Sealing material: PTFE
Valve performance characteristics: two-way sealing
Nominal pressure: 1.6mpa
Connection method: thread
Actuator performance characteristics: built-in limit switch

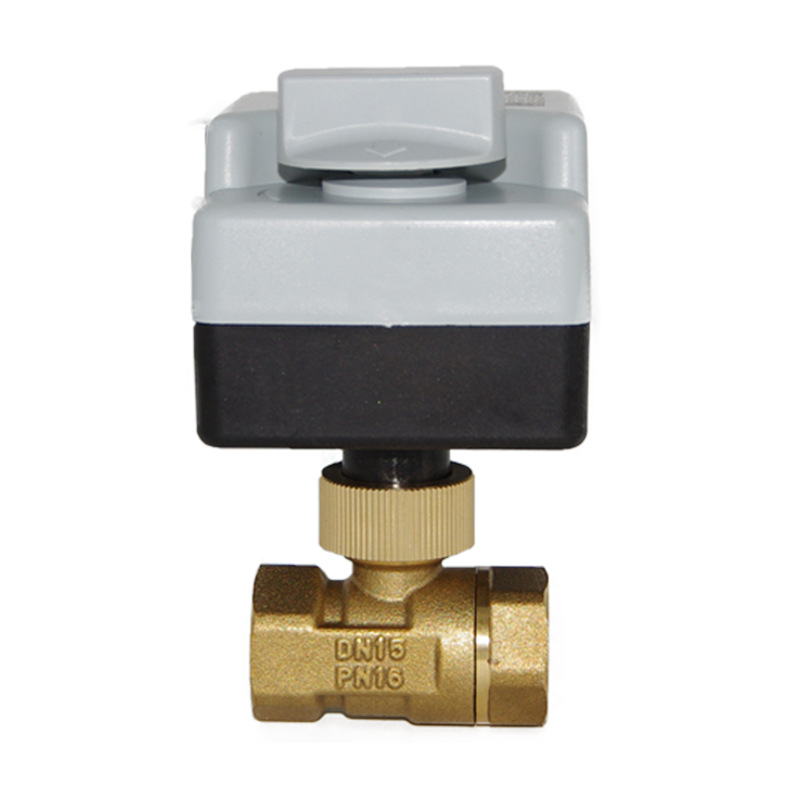

Specifications: A: 220V manual and automatic integrated 4 points two-way DN15
B: 220V manual automatic integration 6 points two-way DN20
C: 220V manual and automatic one-inch two-way DN25
D: 220V manual automatic integrated 1.2 inch two-way DN32
E: 220V manual and automatic integrated 1.5 inch two-way DN40
F: 220V manual and automatic integrated 2-inch two-way DN50

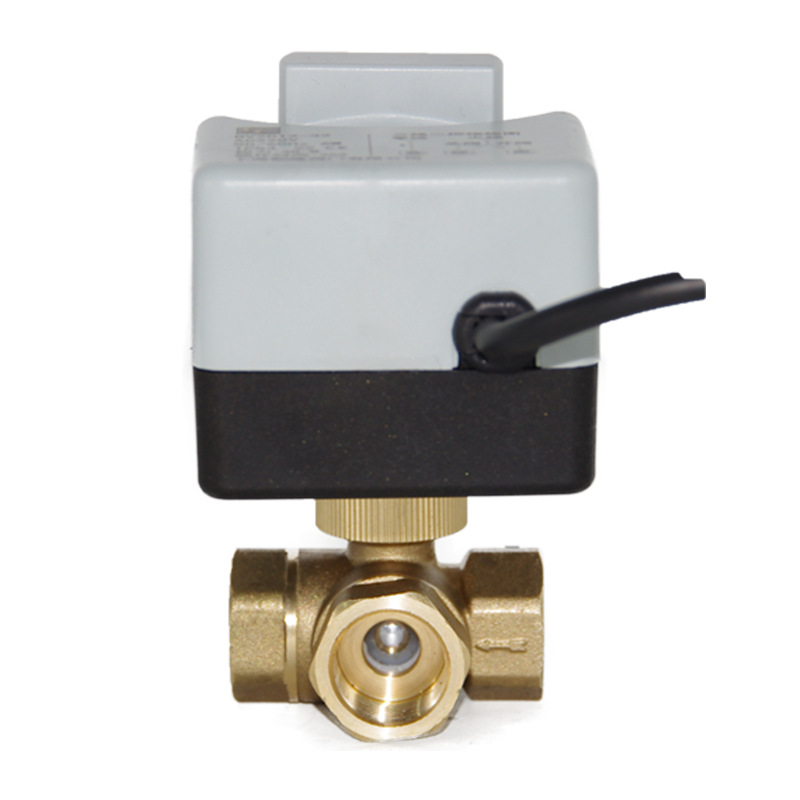

G: 220V manual and automatic integrated 4-point three-way DN15
H: 220V manual automatic integration 6 points three links DN20
I: 220V manual-automatic one-inch three-way DN25
J: 220V manual automatic integrated 1.2 inch tee DN32

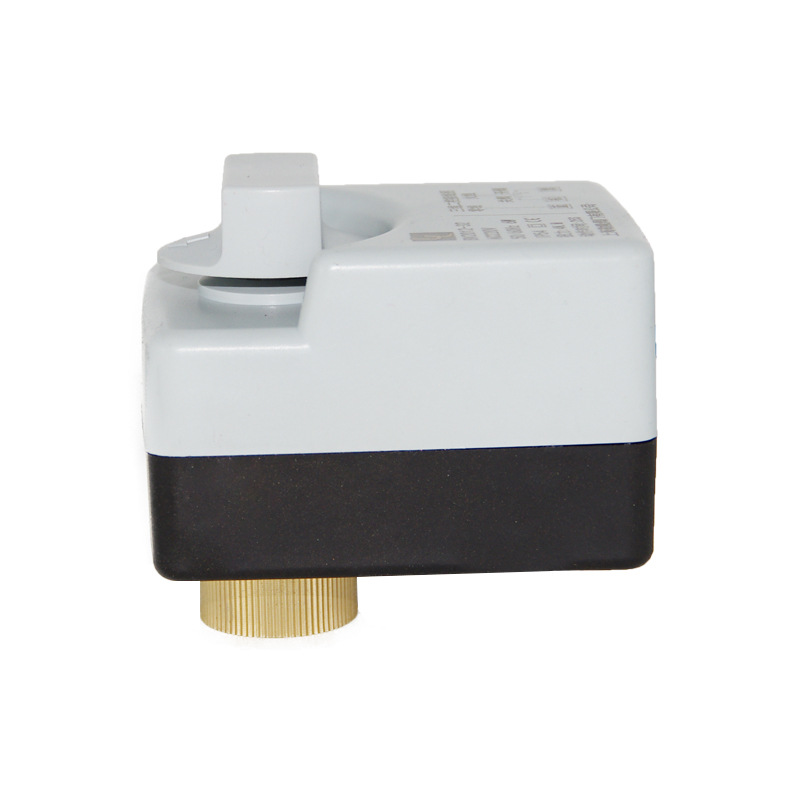

K: Hand-automatic integrated 220v single actuator
L: Separate valve body DN15
Verification Code
The file is downloading, please do not close the page.

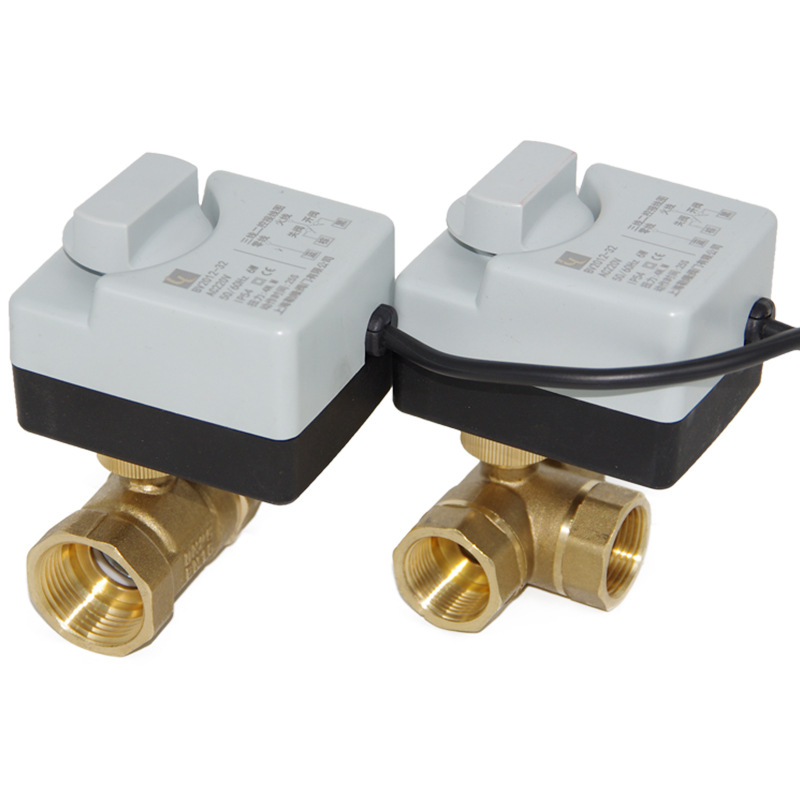

Hand-Automatic Integrated Air Conditioner Solar Water Tap Electric Two-Way Three-Way Ball Valve
- A
- B
- C
- D
- E
- F
- G
- H
- I
- J
- K
- L
