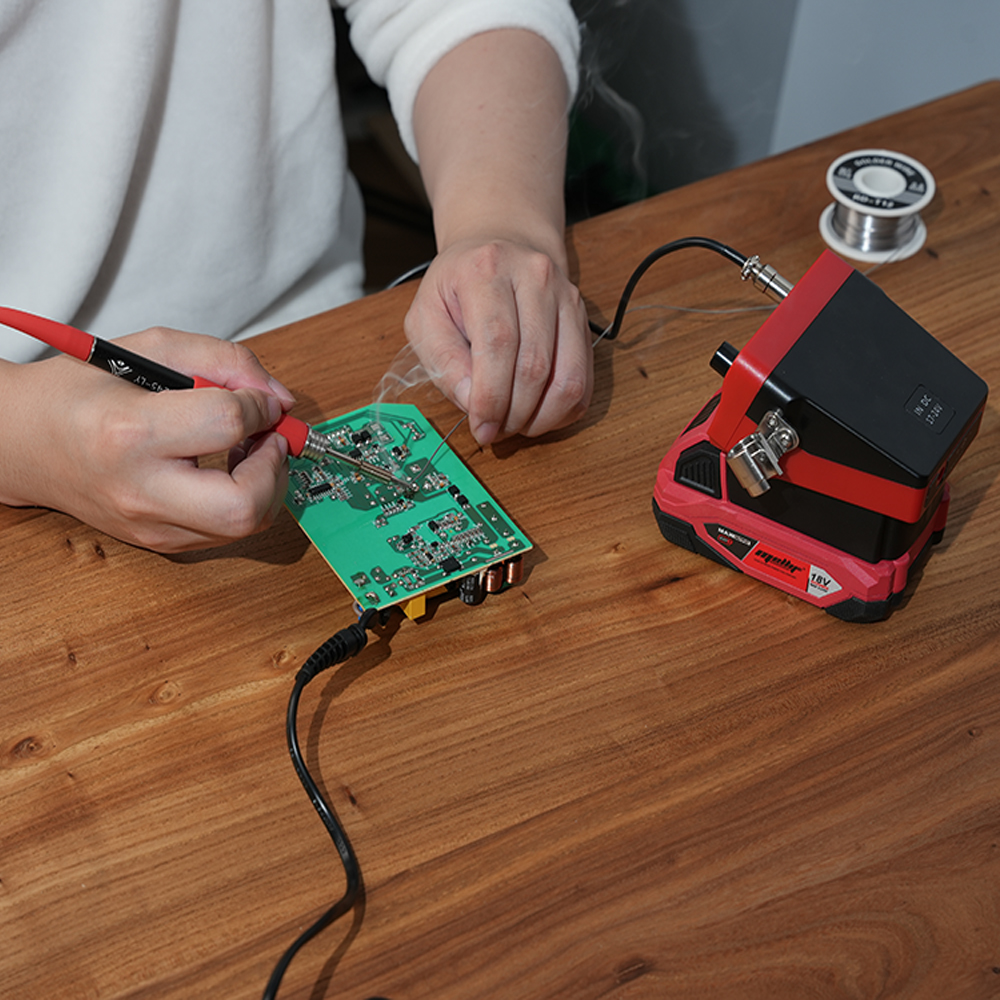

Hybrid Power InputUse with Milwaukee 18V Li-ion Battery or DC Jack (17–24V, min 6A).
Fast Heat-UpReaches working temperature in just 5 seconds.

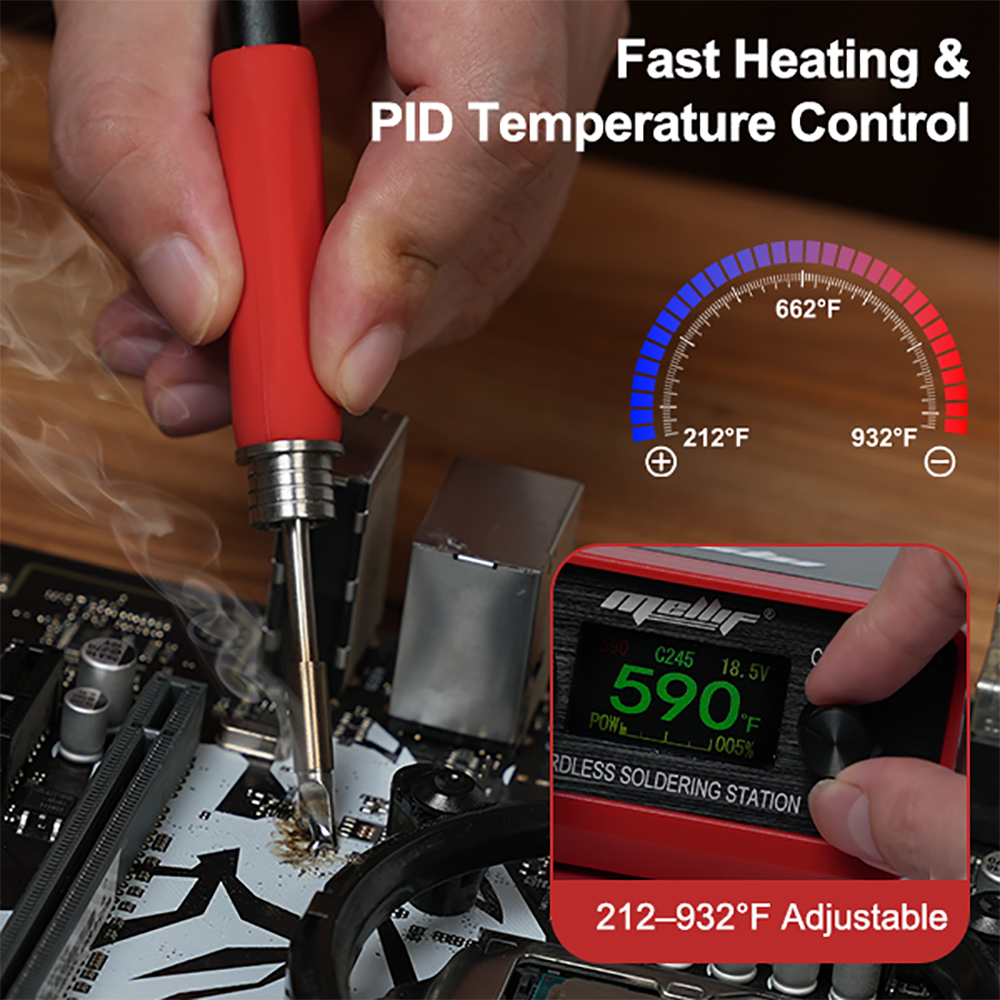

Wide Temperature RangeAdjustable from 100–500°C (212–932°F); recommended max 450°C.
Smart ControlIntelligent PID temperature control ensures fast and stable heating
HD IPS DisplayColor screen with adjustable brightness (levels 1–9).
Sleep & Safety ModesAuto sleep when docked or idle; vibration/stand detection with adjustable timers (0–99 min).

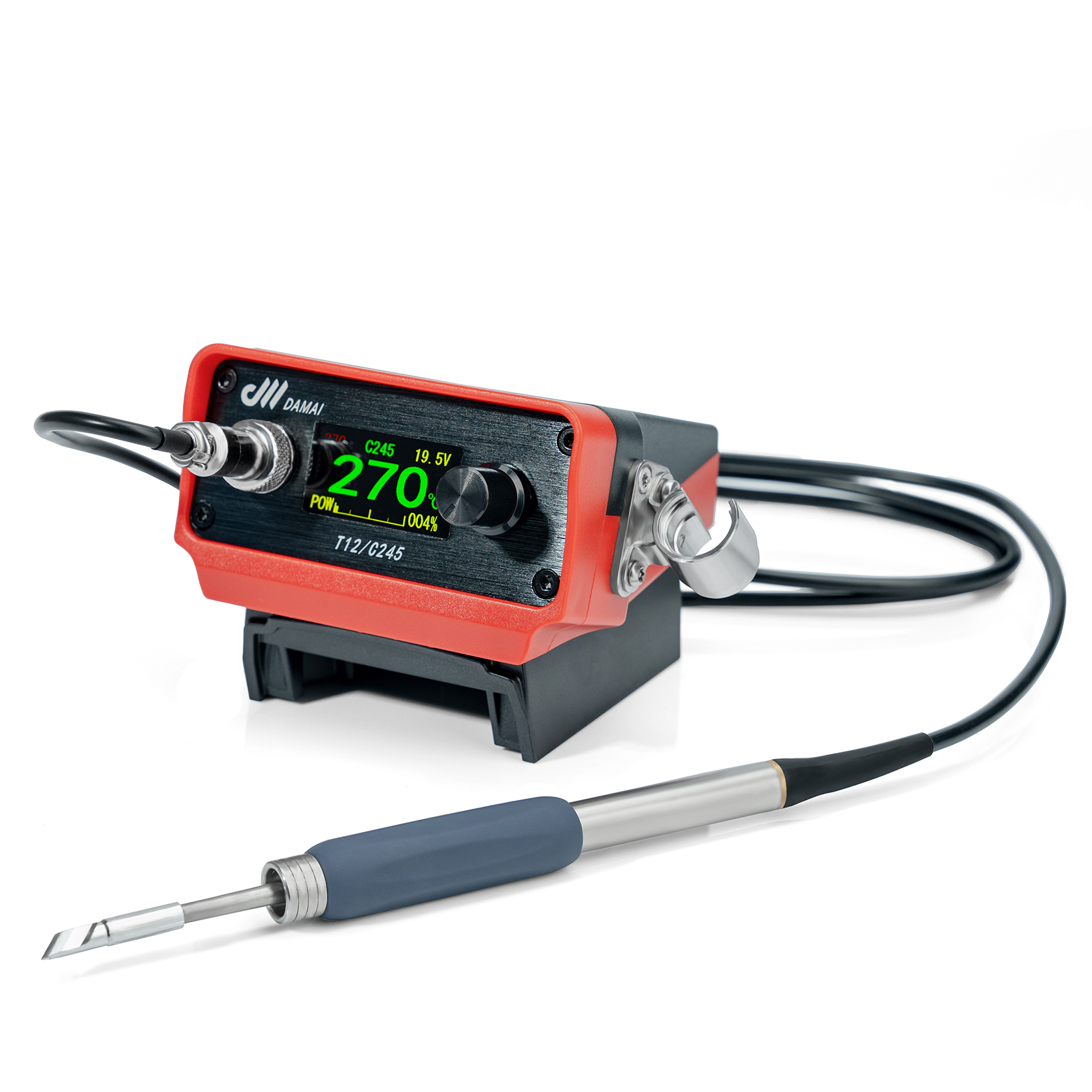

Tip CompatibilitySupports both T12 and 245 tips with easy handle switching
Advanced SettingsChoose °C/°F, adjust temp steps, multi-point calibration (200/300/400/500°C), voltage alarms, factory reset, and switch between EN/CN languages.
