Product information:

Weight: 2.5kg
Material: aluminum alloy
Internal coil: pure copper coil
Inner diameter: 50mm
Model: 500W generator 80 tubes (AC 2)

Features:
The drop of the generator needs 5-15 meters, and the drop is calculated according to the vertical height.
The pipe diameter requires a 75mm pipe diameter, and a complete hose is required for the water volume.
The generator must meet the above requirements to be fully charged.

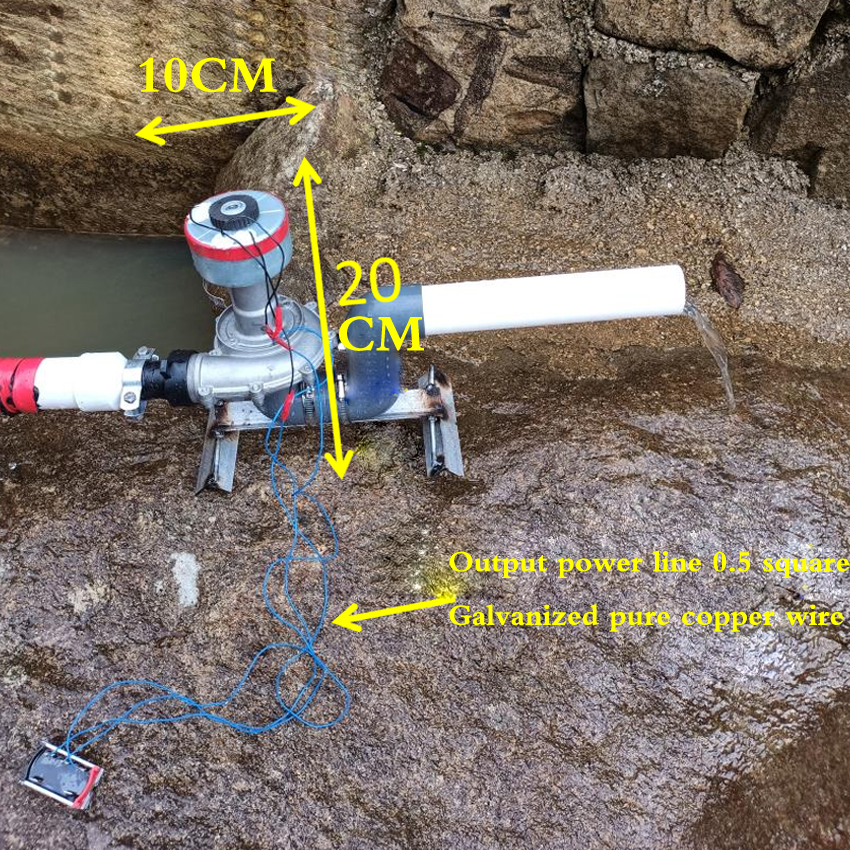

The inlet and outlet of the generator are 50mm, which can be connected to pipes, and the sound is relatively small.
The upstream requires a large barrel or pressure tank, or an upstream water pipe of more than 80mm. so,

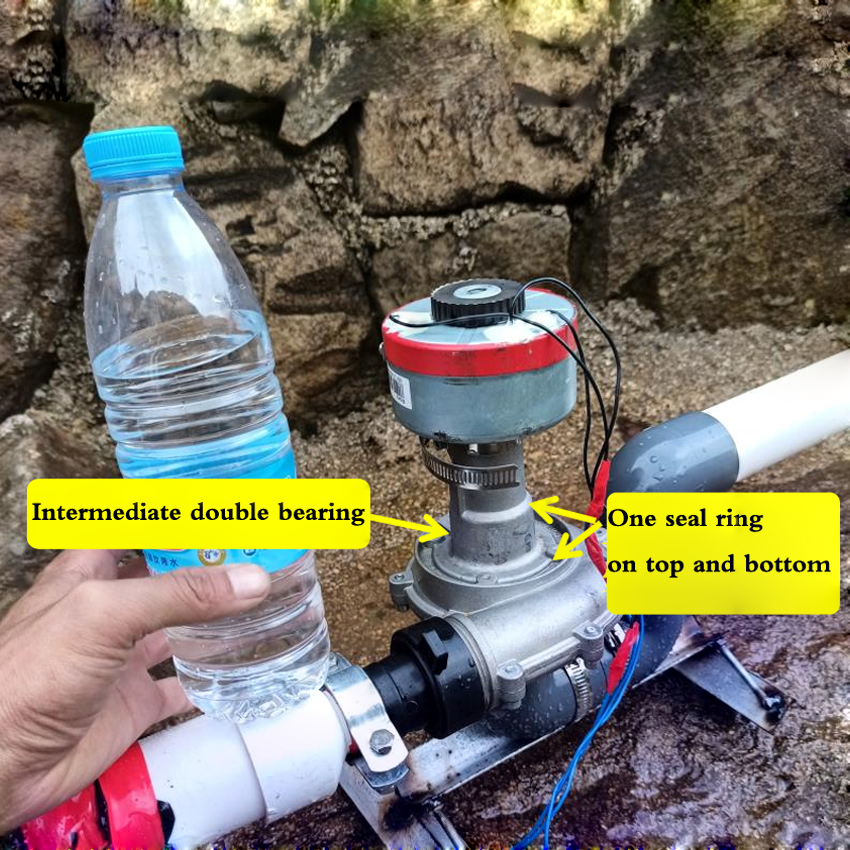

No need to repair the pressure tank. The generator has a sealing ring, and the impeller is relatively tight.

The main function of the sealing ring is to protect the bearing and generator.
Generator bearings without seals are more prone to damage.
Bearings are not durable, and water ingress will burn out the generator coils.
The sealing ring is installed. The downside is a lot of friction.

Packing list:

Water generator*1
