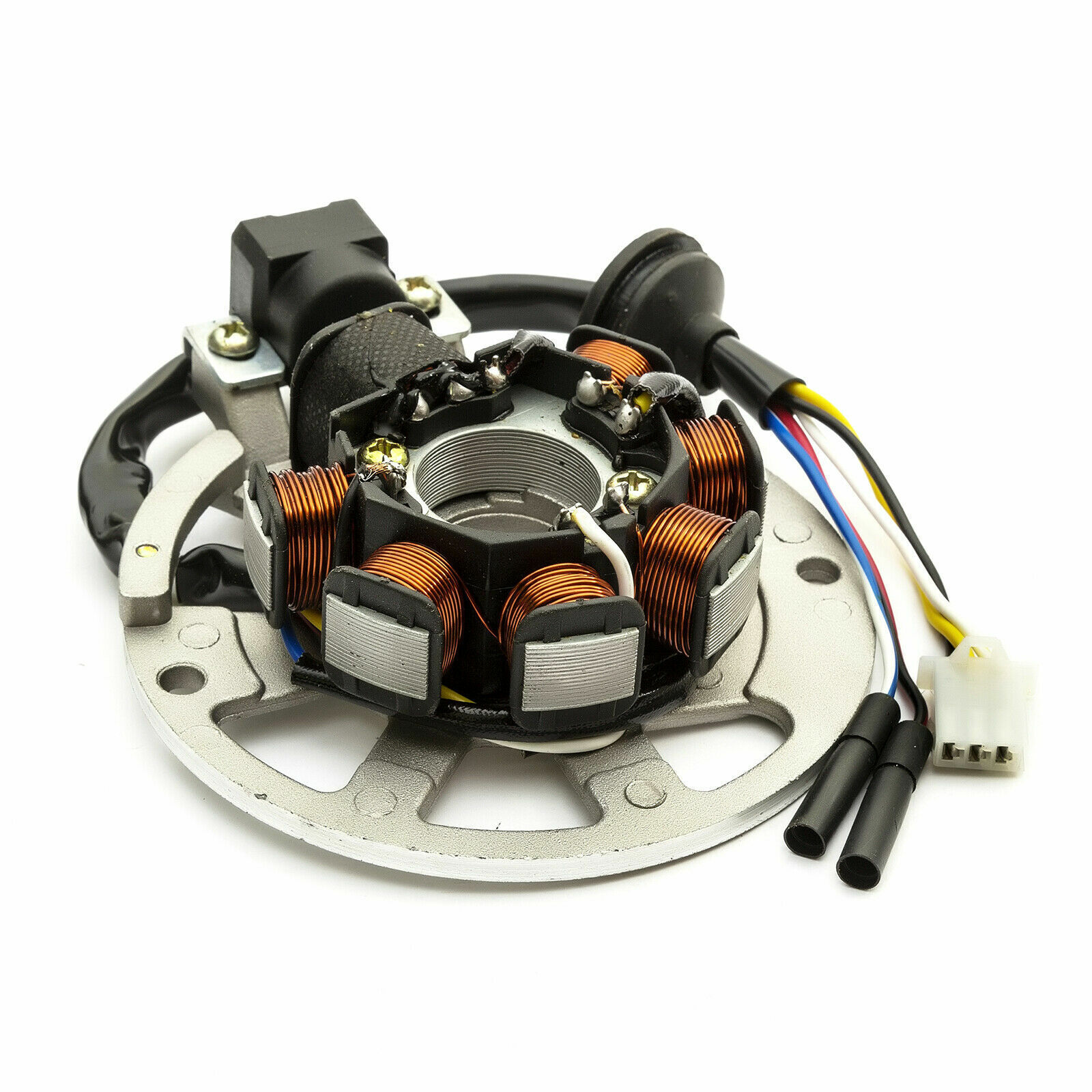

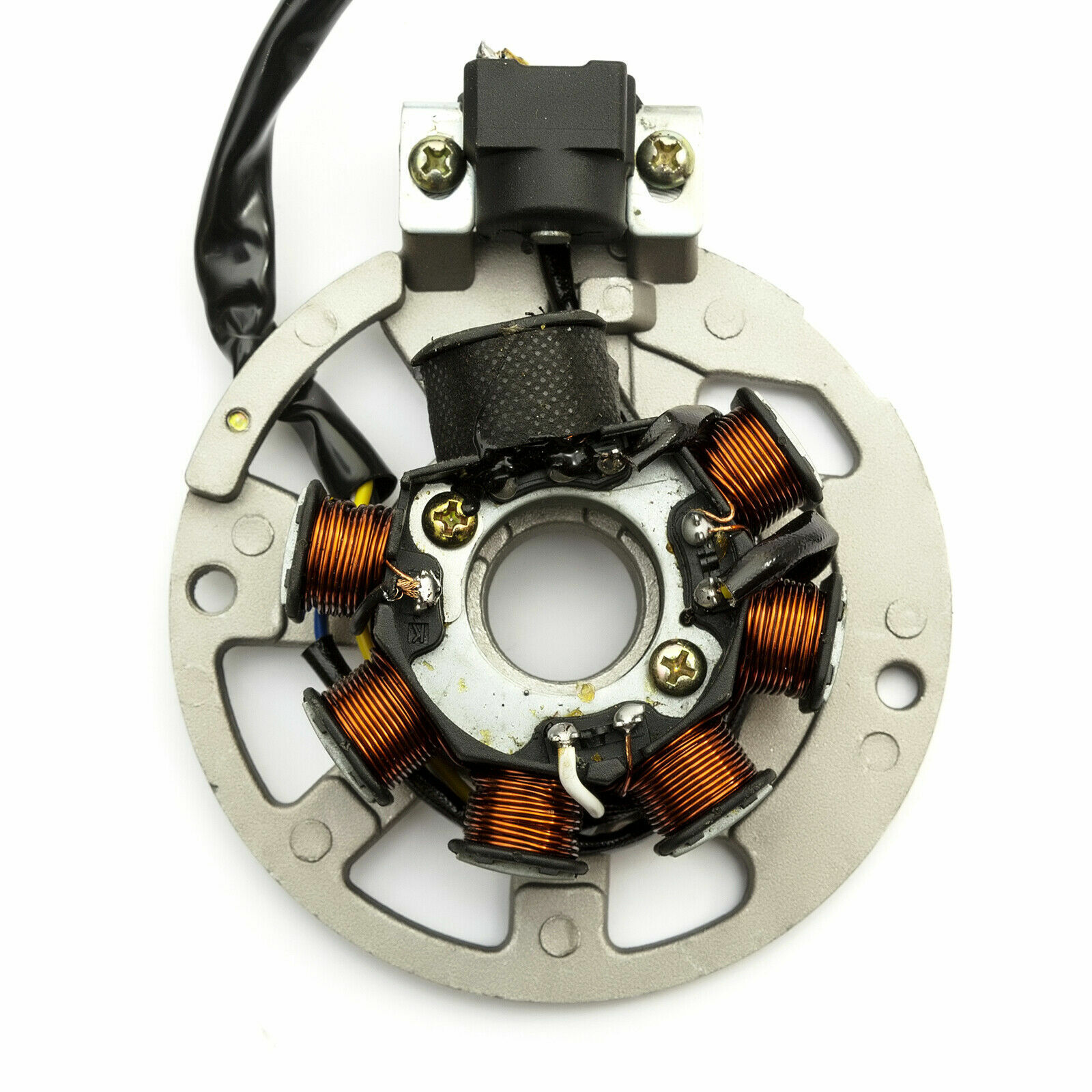

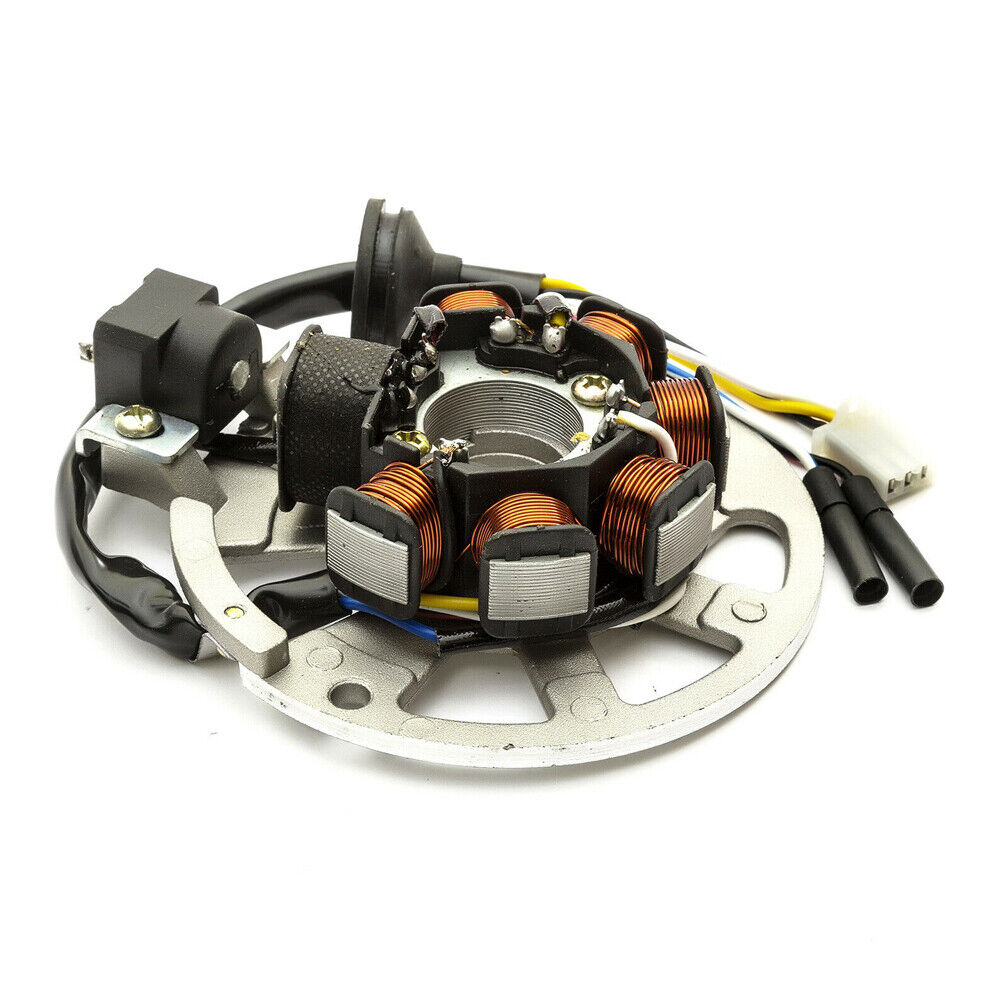

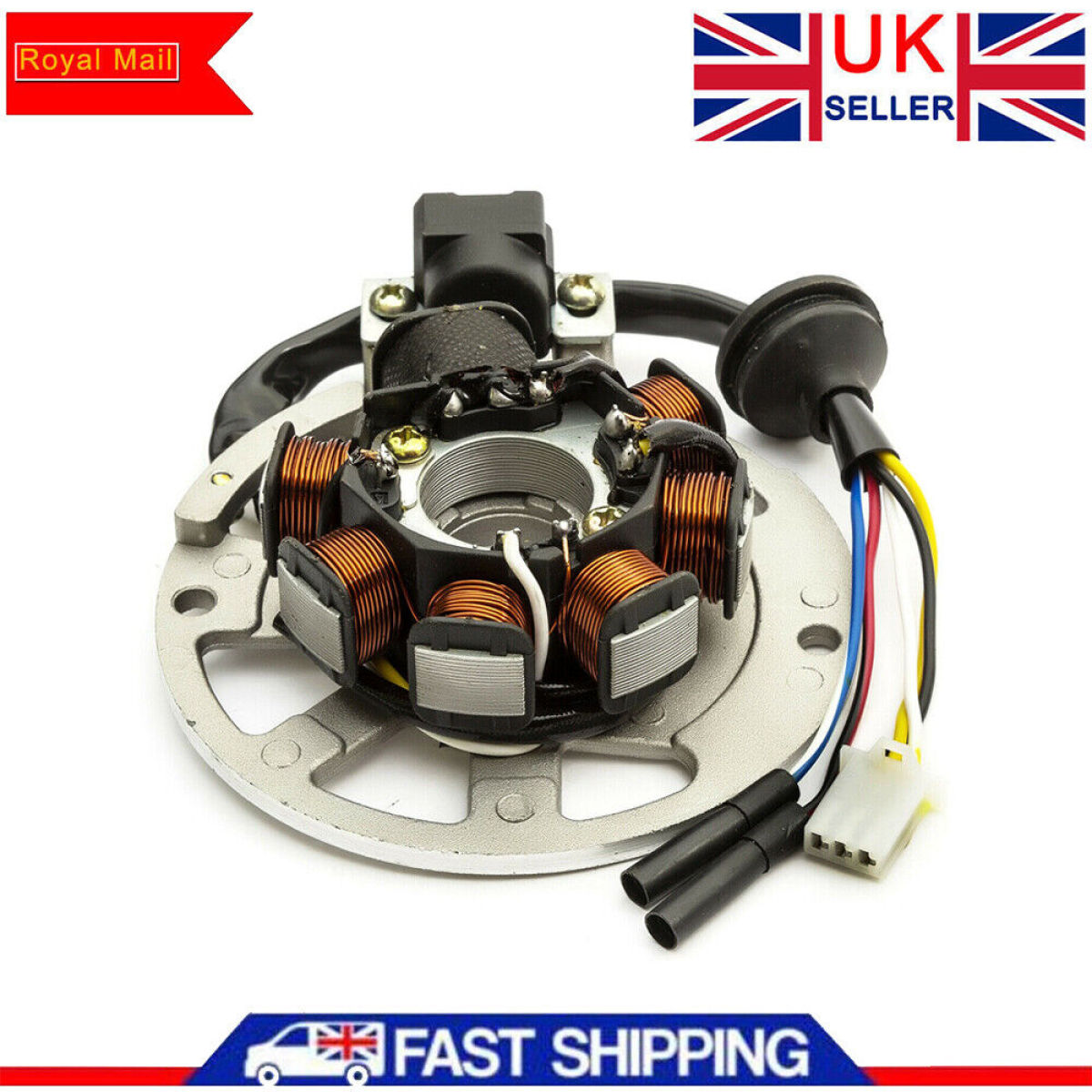

Compatible with pre-2008 Apache RLX 50cc and 100cc 2-stroke quad bikes.
May also fit some similar Aeon, Quadzilla and many other 2 stroke quads / ATV's and some Taiwanese scooter models.

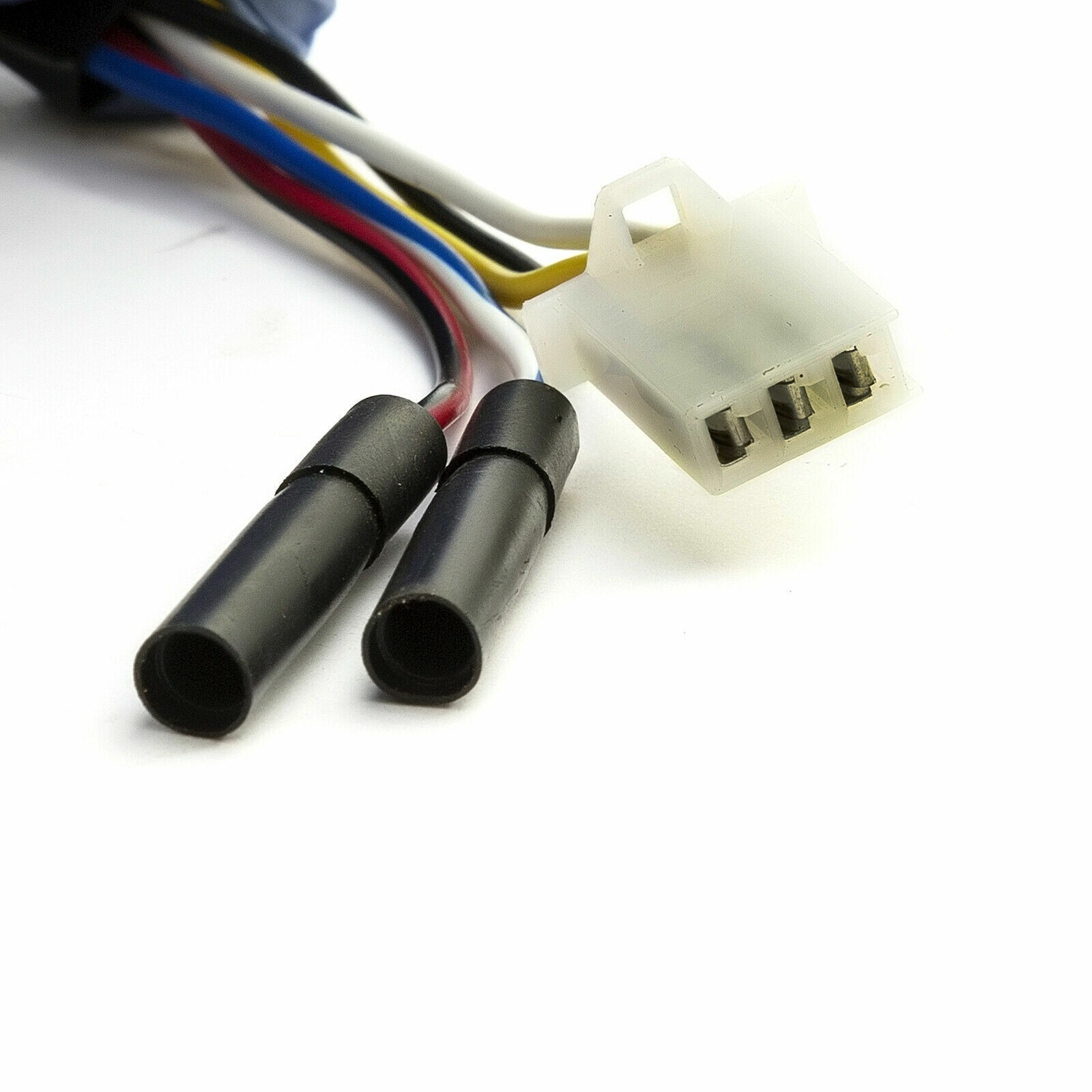

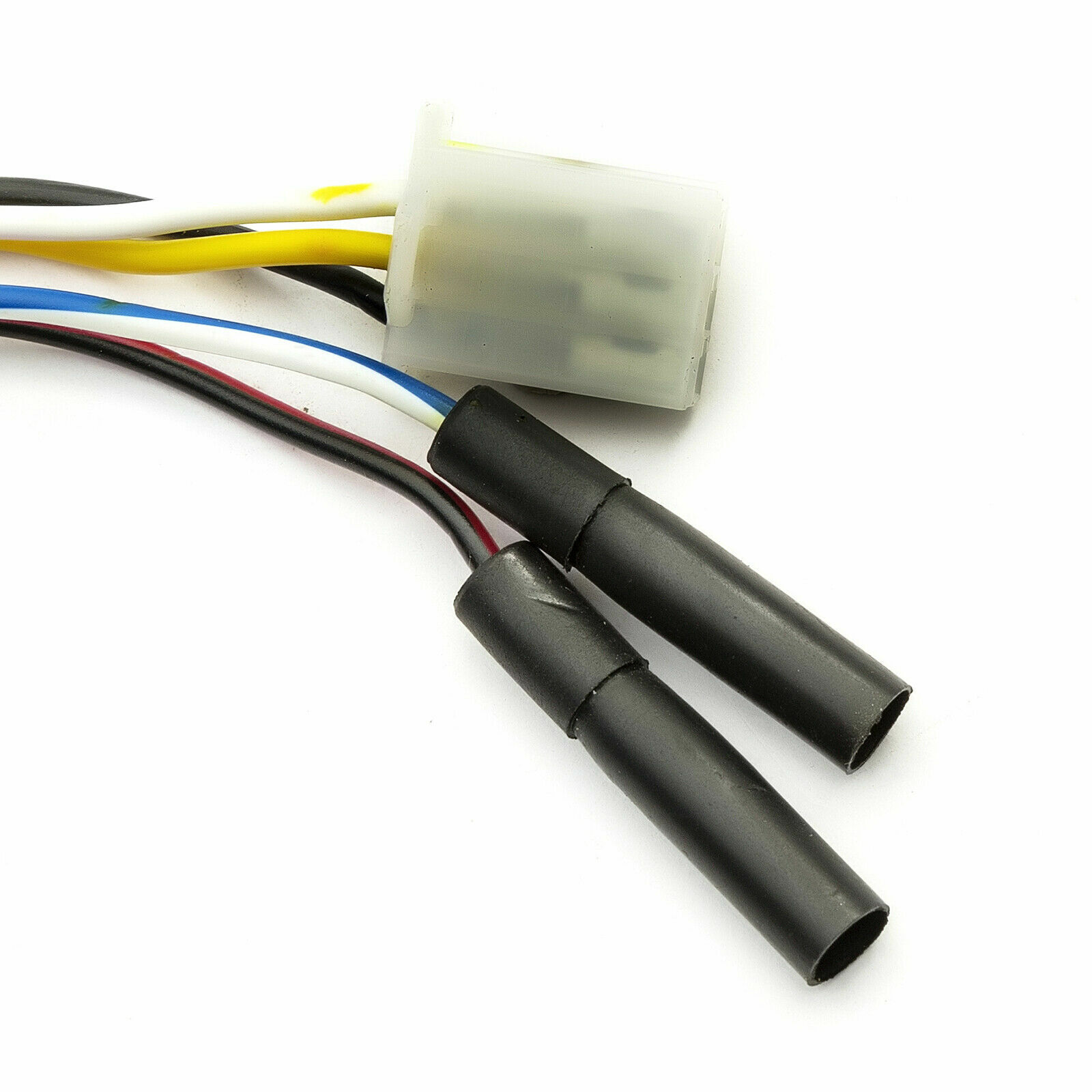

Five wire fitting although this part may use different wiring colours or connectors on non Apache models.
Easy adjustments can be made by copying your old wiring layout and changing your plug to fit this part.
Phone us if you need help.
Diameter of Central Hole (Smallest): 22 mm / 0.87 inches
Inner Diameter (thread): 28 mm / 1.1 inches
Height: 28 mm / 1.1 inches
Greatest Outer Diameter of Stator Plate (Including Pickup): 136.75 mm / 5.38 inches
Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 103.70 mm / 4.08 inches
Greatest Width: 136.35 mm / 5.37 inches
Greatest Height: 34.40 mm / 1.35 inches
Wiring Length (approx.): 435 mm / 17.13 inches
